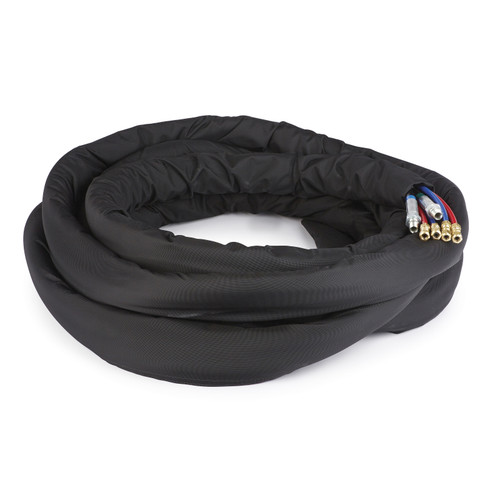

GRACO 245844 - Heated Water Hose, 1/2" x 50 ft, 5600 PSI, (15 m)

Single heated water jacketed hose designed for explosive atmosphere Class I Div I applications, delivering reliable heated fluid transfer at high pressures with enhanced safety features for hazardous environments.

Specifications

• Outside Diameter: 3/8 in (9.5 mm)
• Inside Diameter: 1/2 in (12.7 mm)
• Length: 50 ft (15.2 m)
• Thread: 1/2 NPT(m) Thread A, 1/2 npsm(F) Thread B
• Max Working Pressure: 5000 PSI (345 bar, 34.5 MPa)
• Material: Water jacketed construction
• Temperature Rating: 50 MPa
• Certification: Class I Div 1 explosive atmosphere approved
• Hose Diameter: 1/2 in. (12.7 mm)
• Part Series: 245844, D

Features

• Water jacketed heated design
• Single hose construction
• Approved for explosive atmospheres Class I Div 1
• High pressure rating of 5000 PSI
• 50 foot length for extended reach
• Single hose design for simplified installation

Applications

• Explosive atmosphere environments
• High pressure spray applications
• Industrial heating applications requiring water jacketed hoses
• Explosive atmosphere environments (Class I Div I)
• High pressure heated fluid transfer
• Industrial coating and spray applications requiring heated materials

Compatible Equipment

• XP systems
• XM systems
• XP and XM systems

Related Parts

• 245842 - Heated Water Hose, 5600 PSI, 3/8" x 50 ft
• 248118 - Water Heated Hose, 7250 PSI, 1/2", 50 ft (15 m)
• 248119 - Water Heated Hose, 7400 PSI, 3/8" x 50 ft
• 248120 - Water Heated Hose, 7250 PSI, 1/2", 50 ft (15 m)
• 248121 - Water Heated Hose, 7250 PSI, 3/8" x 50 ft
• 245840, D

Part of the water jacketed heated hose family with various lengths and specifications available. Designed specifically for hazardous location use. Part of the water jacketed heated hose family designed for use with XP and XM systems, specifically rated for explosive atmosphere applications. Part of Single Hose Assembly series. Can be ordered separately as heated hose assembly that meets maximum pressure and hose diameter requirements. Can connect up to six 50 ft. (15.2 m) heated hose sections for maximum total length of 300 ft. (91.4 m).

Reference Manuals

• 3J0679EN (Page 13)
• 3J0679ENEU (Page 13)
• 313259 (Page 5)
• 3A5313 (Page 3)
