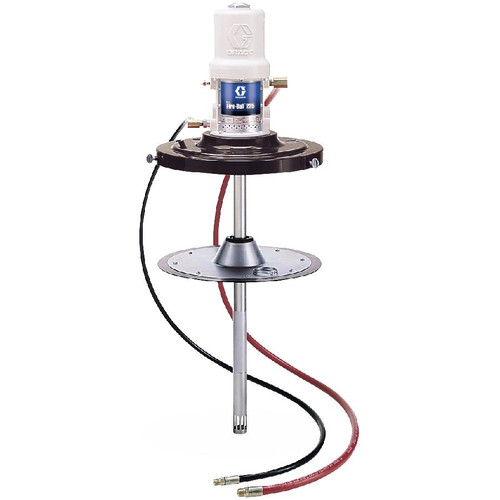

GRACO 246914 Mini Fire-Ball 225 50:1 120 lb. Grease Pump - Stationary Supply Package

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Package Includes:

• GRACO 24R350 Fire-Ball LD Drum Cover for Open-Head 120 lb or 70 lb Drums
• GRACO 24F902 Fire-Ball LD Follower Plate for 70 and 120 lb Drum
• GRACO 222072 Stationary Drum Fire-Ball 300, 50:1 Hose & Fitting Kit, 5000psi
• GRACO 246780 Mini Fire-Ball 225, 50:1 Air-Powered Grease Pump (120lbs, 16G Drum)
• GRACO 17C270 Fireball 225 Pump Shim

Compatible Equipment

• Mini Fire-Ball 225, 50:1 Grease Pump systems
• Installation procedures for models 246914 - Mini Fire-Ball 225, 50:1 120 Lb. Grease Pump Stationary Supply Package, 246917 - Mini Fire-Ball 225, 50:1 400 lb. Grease Pump Stationary Supply Package, 253387, 253390 - Mini Fire-Ball 225 50:1 400 Lb. Grease Pump Stationary Supply Package and 25C689
• 246914 - Mini Fire-Ball 225, 50:1 120 Lb. Grease Pump Stationary Supply Package

Related Parts

• 246915 - Mini Fire-Ball 225, 50:1 120 lb. Grease Pump Portable Package Caster Base
• 253388†
• 246916 - Mini Fire-Ball 225, 50:1 120 Lb. Grease Pump Portable Package 2-Wheel Cart, 50:1
• 246917 - Mini Fire-Ball 225, 50:1 400 lb. Grease Pump Stationary Supply Package
• 253390†
• 253390 - Mini Fire-Ball 225 50:1 400 Lb. Grease Pump Stationary Supply Package

Reference Manuals

• 309967 (Page 2) Mini Fire-Ball 225, 50:1 Grease Pump Packages

Specifications:
