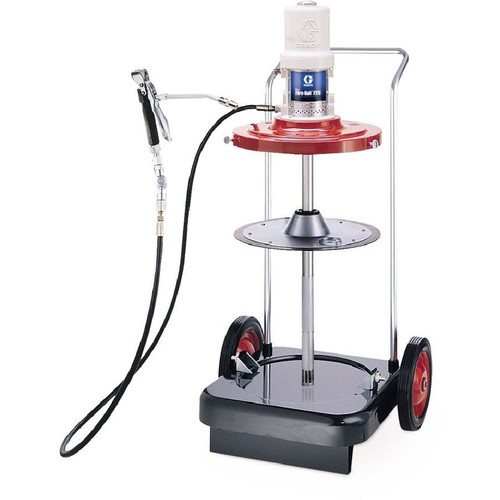

GRACO 246916 Mini Fire-Ball 225 50:1 120 lb. Grease Pump - Portable Package 2-Wheel Cart
You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Package Includes:
- GRACO 203650 Cart for 5, 10 and 16 Gallon Drums
- GRACO 24R350 Fire-Ball LD Drum Cover for Open-Head 120 lb or 70 lb Drums
- GRACO 24F902 Fire-Ball LD Follower Plate for 70 and 120 lb Drum
- GRACO 236058 Mini Fire-Ball 225, 50:1 Dispense, Hose, and Fitting Kit
- GRACO 246780 Mini Fire-Ball 225, 50:1 Air-Powered Grease Pump (120lbs, 16G Drum)
- GRACO 203976 Holder
- GRACO 17C270 Fireball 225 Pump Shim
Specifications:
Air Inlet Size (in) |
0.375 |
Air Inlet Thread Gender |
Female |
Air Inlet Thread Type |
NPT |
Application |
Industrial |
Compatible Material |
Grease |
Fluid Inlet Type |
Slotted |
Fluid Outlet Size (in) |
1/4 |
Fluid Outlet Thread Gender |
Female |
Fluid Outlet Thread Type |
NPT |
Includes |
Mini Fireball 50:1 225 Pump, Dispense Kit, Cover, Follow Plate, Holster, 2-Wheel Truck, Shim |
Maximum Air Working Pressure |
140 |
Maximum Working Pressure (MPa) |
35 |
Maximum Working Pressure (psi) |
5000 |
Motor Type |
Pneumatic |
Mount Location |
Drum Mount |
Power Type |
Pneumatic |
Pump Ratio |
50:1 |
Pump Weight (lb) |
15 |
Series |
225 |
Type |
Piston Pump Package |
Wetted Material |
Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin |
