GRACO 247886 - Reservoir Refill Manual Pump w/ Cover, Follower Plate, Hose & Coupling

Manual Fill Pump designed for filling grease systems with precise control. Features a 22 liter (5 gallon) capacity or 16 Kilo (35 pound) pail compatibility, providing efficient manual filling solution for lubrication applications.

Specifications

• Flow Rate: 2.3 oz (65 g) per stroke high-pressure/low-volume OR 3.0 oz (85 g) per stroke high-volume/low-pressure
• Length: 5 ft (1.5 m) hose length
• Stroke Type: dual-action - delivers grease on both up and down strokes
• Cover Capacity: fits 35 lb or 5 gal (16 kg or 20 l) pail
• Coupling Type: female quick-coupling
• Capacity: 22 Liter (5 gallon) or 16 Kilo (35 pound) pail

Features

• High capacity fill capability
• Manual hand pump operation
• Grease zerk connection
• Includes female coupler for easy connection
• Dual-action pump delivers grease on both up and down strokes
• Adjustable stroke setting for high-pressure or high-volume filling

Applications

• Reservoir refilling for G-series pumps
• High capacity lubrication system maintenance
• Industrial lubrication equipment servicing
• Filling grease reservoir on automatic lubrication systems
• Grease Jockey systems
• MLX systems

Compatible Equipment

• G-series pumps with grease zerk fittings
• Grease Jockey
• MLX
• Tri-Lube HD
• Mobile automatic lubrication systems
• 22 liter (5 gallon) containers

Related Parts

• 562857 - Standard grease gun for Option 1 refill
• 244644 - High capacity fill zerk order item
• 571162 - Manual hand pump order item
• 121474 - Female coupler

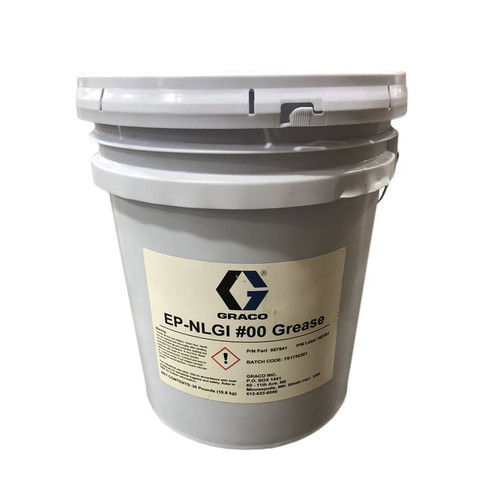

• 557941
• 571030 - G-Series Pump Accessories Remote Manual Run/Monitoring Light12 Vdc
• 571032 - G-Series Pump AccessoryRemote Manual Run/Monitoring Light Kit 12 VDC, includes 16 foot M12 cable
• 571031 - G-Series Pump Accessories Remote Manual Run/Monitoring Light12 VDC, 90-240 VAC

Kit Contents

• 121474 - Female coupler (already included in manual fill pump package)
• Pump assembly
• Cover
• Follower plate
• Hose
• Coupling

This is Option 2b for pump re-filling. Female coupler 121474 is already included in the manual fill pump package. Works with any other coupler that conforms to ISO 7241-1 series B. Female quick-coupling fits standard male coupling on most mobile automatic lubrication systems. Lift ring included on follower plate for easy change out. Manual Fill Pump - Fits 22 Liter (5 gallon) or 16 Kilo (35 pound) pail

Reference Manuals

• 300765 (Page 7) Automatic Lubrication
• 338974 (Page 2) Mobile Heavy-Duty Hand Pump
• 340540 (Page 9) Graco Grease Jockey Fleet Lubrication Solutions Brochure
• 340706 (Page 6) G3 Selection guide
• 352295 (Page 20) Fracturing Equipment Selection Guide
