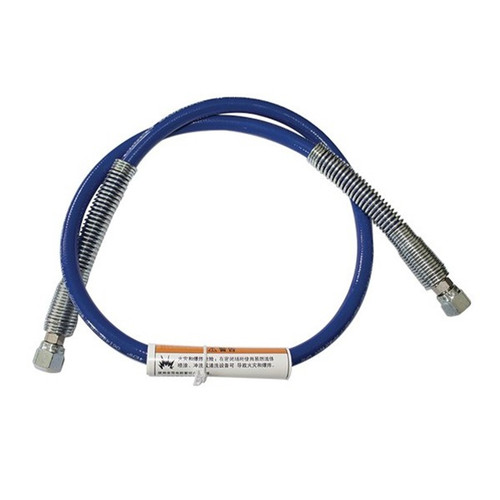

GRACO 248008 - Hose 1/4" x 44", 1/4 (Spjsm), 1/4" ID, 3.6 Ft

Blue Max II Striping Hose - The lightest and most flexible hose on the market for professional striping applications. Features superior flexibility with reduced coil memory for easy handling during coiling and uncoiling. Over 10% lighter weight improves usability while spraying under pressure.

Specifications

• Inside Diameter: 1/4 in
• Length: 3.6 ft
• Thread: 1/4 (spjsm)
• Max Working Pressure: 3300 psi (22.7 MPa) maximum working pressure rated at 180°F at 2:1 D temperature
• Material: Conductive core with nickel-plated wetted fittings
• Diameter: 1/4 in
• First Connection: 1/4 (spjsm)
• Second Connection: 1/4 (spjsm)

Features

• Lightest and most flexible hose on the market
• Over 10% lighter weight improves usability while spraying under pressure
• Superior flexibility and reduced coil memory
• Easy to connect and maintain highest level of performance
• Conductive core meets highest worldwide safety standards
• Material compatible - all wetted fittings are nickel-plated to hold up to all striping materials

Applications

• Professional striping applications
• Line marking
• Pavement marking
• Striping applications
• Paint spraying
• Use with traffic paints

Compatible Equipment

• 17P444 - Kit, Hopper, Llv 3400, Es 1000

Related Parts

• 124884 - Linelazer Hose 3/8" x 22', 3/8 (Swpm), 3/8" OD, 3/8" ID, 227 Bar (3300 PSI)
• 249232 - Hose 1/4" x 3', 1/4 (Swivel), 1/4" ID, 3 Ft, 3300 PSI (227 Bar

Part of the Blue Max II Striping Hose family with various lengths and diameters available Part of drain line system for model 17P444; related to part 17M385 which is also a drain line hose but used on 17P698

Reference Manuals

• 3J0419EN (Page 5) EN-A
• 3J0419EN - A (Page 5)
• 308942 (Page 5) LineLazer 3500, 5000, LineLazer II, III, IV, V 3900, 5900, 3400, ES 1000, Airlessco SureStripe 3350/3350SP/4350, Pioneer BriteStriper 3500/3500SP, Paint Hopper Kits
• 309896 (Page 37) LineLazer III 200HS
• 311021 (Page 35) 248870, 248871, 249012, 249013, 248872, 248873, LineLazer IV 200HS Airless Paint Striper, Repair
