GRACO 24A263 - Kit, Repair, Checkball, 75Cc, 440 Stainless Steel

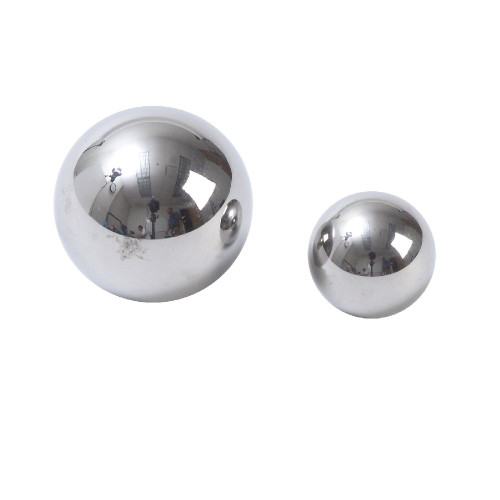

440 Stainless Steel Check Ball Kit - Piston ball (16◆) and intake ball (24◆)

Specifications

• Material: 440 Stainless Steel
• Piston Ball Size: 16◆
• Intake Ball Size: 24◆
• Standard Type: Standard

Compatible Equipment

• LW075A - Merkur Wet-Cup Style SS Displacement Pump, 75 cc, Chromex coated rod & 3 UHMWPE, 2 PTFE packings
• 16U917 - Lower, Assembly, 75cc, Chromex coated rod, 4800 PSI
• LW075S - Kit, Lower Assembly, 75cc, U-Cup

Related Parts

• 24A261 - Stainless Steel Check Ball Kit for Merkur LW025A & LW050A
• 24A264 - Kit, Repair, Checkball, 100Cc, 440 Stainless Steel
• 24A667 - Tungsten Carbide Check Ball Kit for Merkur LW025A & LW050A
• 24A669 - Tungsten Carbide Check Ball Kit for Merkur LW075A
• 24A670 - Check Ball Kit, Tungsten Carbide for Merkur LW100A, LW125A & LW150A

Kit Contents

• Piston ball (16◆)
• Intake ball (24◆)
• Piston ball (16♦)
• intake ball (24♦)
• piston ball (15)
• intake ball (22)

This is a check ball kit specifically for the LW075A model. The ◆ symbol likely indicates a specific ball size designation. This is a check ball kit that includes both piston ball and intake ball components This is part of the Check Ball Kit family. There's also a Tungsten Carbide version available (24A669). See parts illustration and parts list beginning on page 8 for descriptions of items included in each kit.

Reference Manuals

• 312792 (Page 12) Merkur Displacement Pump, Repair/Parts
• 332246 (Page 10) Merkur High Pressure Displacement Pump
• 3A2313 (Page 10) U-Cup Displacement Pump
• 406777 (Page 1) 24A263 Merkur Stainless Steel Check Balls Kit, for Merkur LW075A Displacement Pumps
