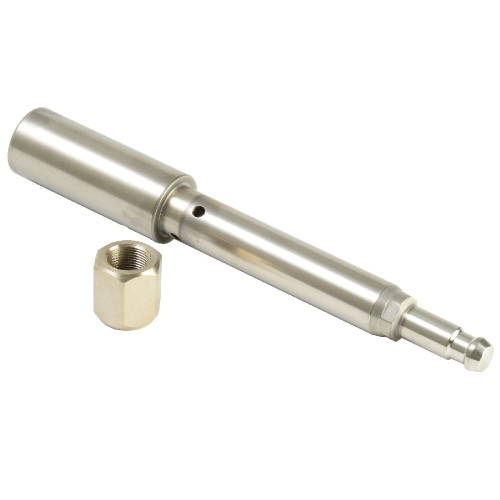

GRACO 24A645 - Merkur Piston Rod Assembly Kit for LW100A Merkur Displacement Pump, Ultralife
PISTON/ROD, assembly; includes 15-18, 36, and 37 (qty. 1) LW075A Ultralife
Specifications
- Material: Ultralife
- Pump Displacement Rod Size: 75cc
- Rod Coating: Ultralife
Compatible Equipment
- LW075A - Merkur Wet-Cup Style SS Displacement Pump, 75 cc, Chromex coated rod & 3 UHMWPE, 2 PTFE packings
Related Parts
- 24A643 - LW025A Ultralife
- 24A644 - LW050A Ultralife
- 24A646 - LW100A Ultralife
- 24A647 - LW125A Ultralife
- 26C705 - LW125B Chromex
- 24A648 - LW150A Ultralife
- 26C704
- 25B081 - Kit, Rod, Displacement, Wetcup, 50cc, Chromex
Kit Contents
- 15† - SEAT, piston valve, tungsten carbide
- 16♦ - BALL, piston valve, 440 stainless steel
- 17† - NUT, flow through
- 18*† - O-RING, piston
- 36 - NUT, coupling
- 37 - COLLAR, coupling; pkg. of 10
This is reference #3 in the parts table. Some included parts are available in Seal Repair Kit and Check Ball Kit as noted by symbols. For replacing the Piston Rod Assembly on Merkur Displacement Pumps. For professional use only.
Reference Manuals
- 312792 (Page 11) Merkur Displacement Pump, Repair/Parts
- 313519 (Page 1) Merkur Piston Rod Assembly Kit, Repair Kit Instructions
