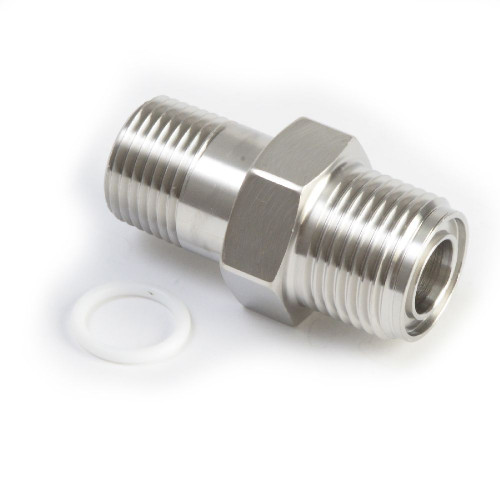

GRACO 24A840 - Outlet Fitting Kit, 50 cc, 3/8-18 NPT X 3/4-16 UNF

GRACO 24A840 - Outlet Fitting Kit, 50 cc, 3/8-18 NPT X 3/4-16 UNF

Item #: 24A840

Price: $109.76

QTY:

Usually ships in 2-3 business days

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Item Description
GRACO 24A840 - Outlet Fitting Kit, 50 cc, 3/8-18 NPT X 3/4-16 UNF

OUTLET FITTING KIT (includes 48) LB050B and LB100B, 3/8-18 NPT x 3/4-16 un

Specifications
- Thread: 3/8-18 NPT X 3/4-16 UNF
Compatible Equipment
- LW025A-LW100A
- LB500A
- LB100A
- LB050B
- LB100B
Related Parts
- 24A841
- 24A842 - OUTLET FITTING KIT for LB150A with 1-11.5 NPT x 1 3/16-16 un threading
- 24A842 - INLET FITTING KIT LB150B, 3/4-14 NPT x 1 3/16-16 un
Kit Contents
- Includes part 33 (qty. 1)
- 48 - O-RING, outlet fitting, not shown
- 48 - (component not specified in description)
Available for LW025A through LW100A models. Part of outlet fitting family with 24A841 (LW125A) and 24A842 (LW150A). This is reference item 19 in the parts list for Models with V-Packings. The kit includes part 48 which is an O-Ring for the outlet fitting. This is reference item 19 in the parts table for Models with U-Cup Packings (Non-acid). Quantity is 1.
