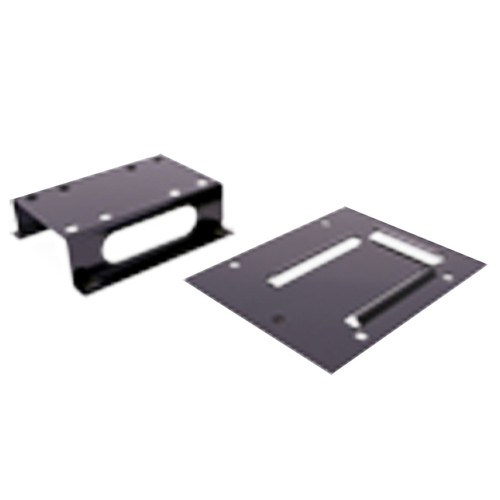

GRACO 24A934 - SD Series Open Reel Mounting Channel Kit (Accommodates 1 Reel), 3/8-16 UNC

Specifications

• Length: 9.0 inch/228.6 mm
• Thread: 3/8-16 UNC-2B
• Size: Size 10
• Reel Capacity: 1 reel
• Model Size: Size 10
• Width: 7.75 inch/196.8 mm
• Mounting Hole Spacing: 7.50 inch/190.5 mm
• Edge Distance: 0.50 inch/12.7 mm
• Bottom Edge Distance: 0.75 inch/19.05 mm
• Center Spacing: 6.75 inch/171.4 mm
• Weld Nuts: 4 x 3/8-16 UNC-2B

Compatible Equipment

• 1 Reel Base mounting systems
• Size 10 Models: 24A934, 24A935, 24A936, 24A937, 24A938, 24A939
• Size 10 reel systems

Related Parts

• 203521 - Mounting Enclosed Reel for Ceiling or Wall
• 24N674, 24A935 (2 Reels), 24A936 (3 Reels), 24A937 (4 Reels), 24A938 (5 Reels), 24A939 (6 Reels), 24N674 (Size 5, 1 Reel), 24N675 (Size 5, 2 Reels)
• 24N675 - for Mounting Two SD Series Reel to Ceiling, 8 x 39=16 UNC Weld Nut

Kit Contents

• 101 - SCREW, 3/8" - 16 x 5/8" (5 pieces)
• 102 - WASHER, lock, 3/8" (5 pieces)
• 103 - BASE, reel, channel (1 piece)
• 104 - PLATE, hold down (1 piece)
• 105 - BASE, plate (1 piece)

This is referenced in the mounting channel dimensions section. 24A934 and 203521 appear to be alternate or equivalent Size 10 kits for 1 Reel Base applications. 24N674 is the corresponding Size 5 kit. This is a ceiling mounting kit without an I-beam for open channel installation. See page 15 for Open Channel dimensions. Templates to scale are provided starting on page 27. This is a 1 reel base mounting channel used with Size 10 kits. Grouped with part 203521 as an alternative. Dimensions shown are for the mounting channel that accommodates one reel.

Reference Manuals

• 3A2592 (Page 2) SD Series Cord and Light Reel, Installation-Operation
• 3A2828 (Page 18) Hose or Cord and Light Reel Enclosure
• 3A7926 (Page 13) SD Series Hose Reels
• 3A8626 (Page 16) SDX and XDX 10/20 Series Hose Reels
