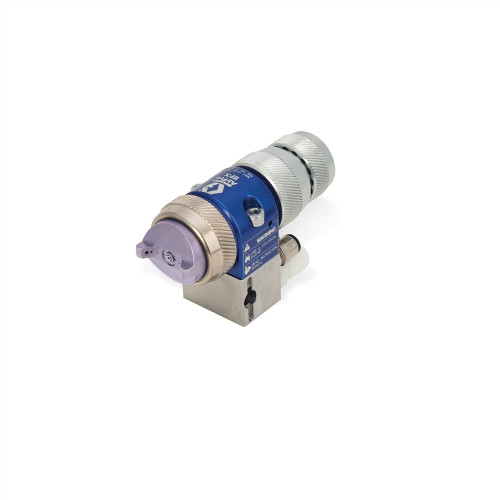

GRACO 24B864 - AirPro EFX Auto Air Spray Gun w/ Manifold, HVLP .043" Nozzle, SST Tip, Indexing Fluid Adjust Knob
HVLP manifold style spray gun with 1.1mm (0.043 in) nozzle designed for light-medium viscosity materials, delivering 25-250 cc/min flow rate with SST needle tip and indexing fluid adjustment knob for precise control
The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.
- Aircaps and nozzles deliver superior, precision spray performance
- Precision fluid adjustment with a micrometer-telescoping knob
- High wear components designed for abrasive materials
- Excellent fluid flow rate stability and repeatability
Additional Specifications
- Flow Rate: 25 - 250 cc/min (0.8 - 8.5 oz/min)
- Material: SST (Stainless Steel)
- Nozzle Size: 1.1 mm (0.043 in)
- Material Viscosity: light-medium
- Needle Tip Material: SST
- Needle Nozzle Kit: 24D305
- Air Cap With Pin: 24C183
- Orifice Size: 0.043 in. (1.1 mm)
- Series: C
- Manifold: with manifold
- Orifice Size Mm: 1.1
- Needle Nozzle Kit Part No: 24D305
- Air Cap With Pin Part No: 24C183
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Plastic |
| Compatible Material | Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Indexing |
| Fluid Orifice Size (in) | 0.043 |
| Gun Activation | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1.3 |
| Includes | Air Cap with Pin, Fluid Adjustment Knob, Manifold, Needle/Nozzle Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 8.5 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Minimum Flow Rate @ PSI (oz/min) | 0.8 |
| Model | AirPro |
| Needle Tip Material | Stainless Steel |
| Overall Height (in) | 1 |
| Overall Length (in) | 4.1 |
| Overall Width (in) | 1 |
| Purge Method | Air |
| Series | EFX |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Type | Spray Gun |
Features
- HVLP (High Volume Low Pressure) technology for reduced overspray
- Manifold style design for professional applications
- SST (Stainless Steel) needle tip for durability and chemical resistance
- Indexing fluid adjustment knob for precise material flow control
- 1.1mm nozzle optimized for light-medium viscosity materials
Applications
- Automotive refinishing
- Industrial coating applications
- Light to medium viscosity material spraying
- Professional spray finishing
Compatible Equipment
- HVLP spray systems
- Manifold style spray gun setups
- HVLP spray applications
- Models with manifolds
Related Parts
- 24D305 - Needle/Nozzle Kit
- 24C183 - Air Cap with Pin
- 24B862 - HVLP 0.5mm manifold gun
- 24B863 - HVLP 0.7mm manifold gun
- 24B865 - HVLP 1.3mm manifold gun
- 24B882 - HVLP without manifold 0.043 in.
- 24B862 - HVLP with manifold 0.020 in.
- 24B863 - HVLP with manifold 0.028 in.
- 24B865 - HVLP with manifold 0.051 in.
- 24B881 - HVLP without manifold 0.028 in.
Part of GRACO's HVLP manifold style gun series with interchangeable needle/nozzle kits and air caps for versatility Needle tip and nozzle exit constructed from tungsten carbide. Models with manifold have fully stainless steel fluid passages. HVLP type spray gun with 0.043 inch (1.1mm) orifice, includes stainless steel needle tip/nozzle exit with indexing fluid adjustment knob and plastic fitting construction
