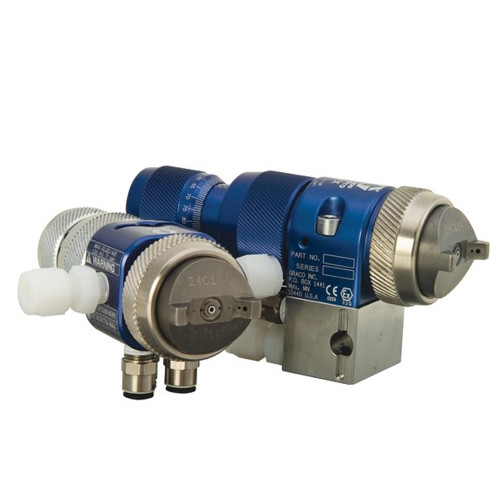

GRACO 24B891 - AirPro EFX Auto Air Spray Gun, Direct Connect, LVMP, 0.051" Nozzle, SST Tip, Indexing Fluid Adjust Knob
Direct Connect Style LVMP spray gun designed for medium viscosity materials with precise flow control and professional finishing capabilities
The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.
- Aircaps and nozzles deliver superior, precision spray performance
- Precision fluid adjustment with a micrometer-telescoping knob
- High wear components designed for abrasive materials
- Excellent fluid flow rate stability and repeatability
Additional Specifications
- Flow Rate: 35 - 350 cc/min (1.2 - 11.8 oz/min)
- Material: SST (Stainless Steel)
- Nozzle Size: 1.3 mm (0.051 in)
- Material Viscosity: medium
- Needle Tip Material: SST
- Needle Nozzle Kit: 24D281
- Air Cap With Pin: 24C184
- Orifice Size: 0.051 in. (1.3 mm)
- Series: C
- Manifold: without manifold
- Needle Nozzle Kit Part No: 24D281
- Air Cap With Pin Part No: 24C184
- Orifice Size Mm: 1.3
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Plastic |
| Compatible Material | Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Indexing |
| Fluid Orifice Size (in) | 0.051 |
| Gun Activation | Automatic |
| Gun Type | LVMP Gun |
| Gun Weight (lb) | 0.6 |
| Includes | Air Cap with Pin, Needle/Nozzle Kit, Fluid Adjustment Knob |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 11.8 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Minimum Flow Rate @ PSI (oz/min) | 1.2 |
| Model | AirPro |
| Needle Tip Material | Stainless Steel |
| Overall Height (in) | 1 |
| Overall Length (in) | 4.1 |
| Overall Width (in) | 1 |
| Purge Method | Air |
| Series | EFX |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | LVMP |
| Type | Spray Gun |
Features
- Direct Connect style for quick setup
- LVMP (Low Volume Medium Pressure) technology for efficient material transfer
- Indexing fluid adjustment knob for precise control
- Stainless steel needle tip for durability
- 1.3mm nozzle size for medium viscosity materials
Applications
- Medium viscosity coating applications
- Professional spray finishing
- Industrial coating operations
Related Parts
- 24D281 - Needle/Nozzle Kit
- 24C184 - Air Cap with Pin
- 248887 - LVMP 0.5mm Direct Connect
- 248888 - LVMP 0.7mm Direct Connect
- 248889 - LVMP 0.9mm Direct Connect
- 248890 - LVMP 1.1mm Direct Connect
- 24B873
- 24B994
- 24B874
- 24B875
Part of the LVMP Direct Connect gun family with indexing fluid adjustment for precise material flow control This is an LVMP (Low Volume Medium Pressure) spray gun model without manifold. Models with manifold have fully stainless steel fluid passages. This is an LVMP (Low Volume Medium Pressure) type gun assembly part with stainless steel construction and indexing fluid adjustment knob
