GRACO 24B965 - Cutter Drum, 5 Pt Diamond, 5 In Cut, 5", Diamond

Diamond drum cutter designed for the GrindLazer HP DC1021 G DCS surface preparation system. This 5-inch wide diamond drum cutter provides precise cutting power for inlay/grooving jobs and surface preparation applications on concrete and similar surfaces.

Additional Specifications

• Outside Diameter: 5 in (13cm)
• Material: Diamond
• Number Of Blades: 19
• Cut Type: Fine cut
• Spacers Included: 21
• Blades: 19
• 1 8 Spacer: 21
• 1 4 Spacer: 21
• Square Key: 2
• Cutter Type: Diamond Drum

Specifications

Features

• Diamond drum style cutter for superior cutting performance
• Fine cut design for precision applications
• Includes 21 spacers for proper blade alignment
• Compatible with multiple GrindLazer models
• Diamond cutting technology for superior durability
• 5-point cutting configuration for enhanced performance

Applications

• Surface preparation
• Concrete grinding
• Fine cutting applications
• Floor preparation
• Concrete cutting
• Industrial floor preparation

Compatible Equipment

• GrindLazer Pro DC1013 G
• GrindLazer HP DC89 G
• GrindLazer HP DC1013 G (DCS)
• GrindLazer HP DC1021 G (DCS)
• Pro/HP Series Diamond Blade systems
• GrindLazer HP DC1021 G DCS

Related Parts

• 24D583 - Diamond drum assembly, 10" fine cut
• 24E289 - Individual cutter
• 16A258 - Diamond spacer plate, 1/8"
• 16A257 - Diamond spacer plate, 1/4"
• 123252 - Square key
• 16A259 - Threaded end plate
• 24D082 - Diamond bare drum
• 24B563
• 24B269
• 16A259

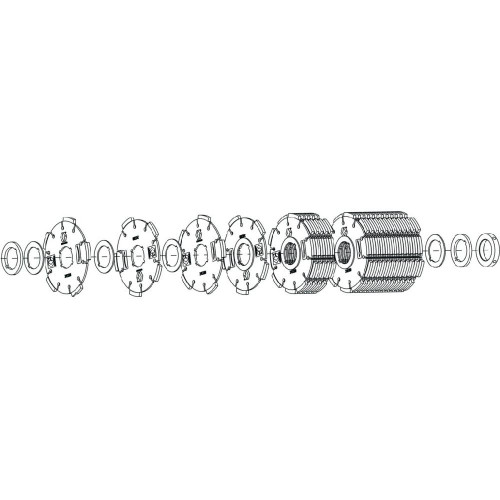

Kit Contents

• 19 diamond blades
• 21 spacers
• 2 square keys
• 1 end plate
• 1 arbor

Part of the drum style cutters family for GrindLazer grinding equipment. See repair manual for additional cutter stacking recommendations. Part of the Pro/HP Series Diamond Blades family, designed for no spacing applications with specific blade and spacer configurations Part of the High Production Series GrindLazer system. Works with the GrindLazer Depth Control System for precise cut depth control and reduced guesswork.

Reference Manuals

• 341251 (Page 28)
• 344384 (Page 18)
• 3J0210EN (Page 6)
• 3J0210EN-A (Page 6)
• 3J0210EN-C (Page 6)
