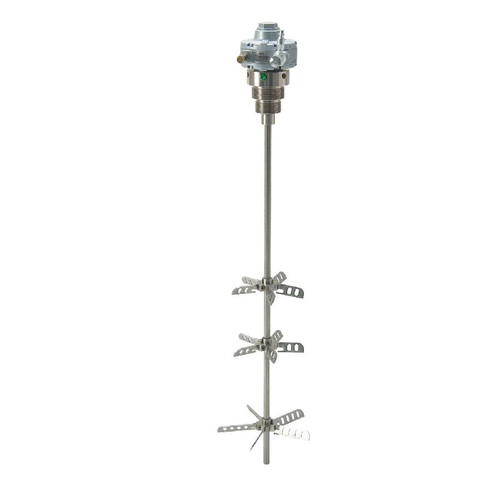

GRACO 24C729 - Air Driven Expanding Blade Bung-Mounted Agitator, High Viscosity, 303, 100 PSI, 1 1/2-11.5 NPSM and 2-11.5 NPSM
High viscosity air-driven expanding blade bung-mounted agitator designed for sealed containers with 1-1/2 inch or 2 inch bung access. Features 1.75 HP motor for effective mixing of foam, polyurea, and general finishing applications. Includes angle adapter for reduced vortexing and off center mounting.
High viscosity (2,000 cps) air driven expanding blade bung-mounted agitator
- Corrosion resistant materials increase durability
- Threads into 1.5- or 2-inch drum bung
- Angled adapter reduces vortexing and allows for off-center mounting
- Customize configuration by adjusting blade height or by adding blade assemblies
- Collapsible blades fit through drum bung and expand when spinning for efficient mixing
- High Viscosity (2,000 cps)
Additional Specifications
- Thread: 1 1/2-11.5 npsm and 2-11.5 npsm
- Max Working Pressure: 100 PSI (7 bar, 0.7 MPa)
- Material: 303, 18-8, and 304 stainless steel
- Air Consumption 400Rpm: 22 scfm (0.62 m³/min) at 100 PSI
- Noise Level Pressure: 75.74 dB at 100 PSI
- Noise Level Power: 82.32 dB
- Weight: 13.1 lb (5.9 kg)
- Drive Type: Air
- Drive: Air
- Max Air Input Psi: 100 (7)
- Wetted Parts: 303, 18-8 and 304 SST
- Viscosity: High Viscosity (2,000 cps)
| Air Inlet Size (in) | 1/8 |
| Air Inlet Thread Type | NPT |
| For Use With | Drums with 2 inch Bung |
| Includes | Angled Adapter |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 2000 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Power Rating (HP) | 1.75 |
| Type | Agitator |
| Weight (lb) | 13.1 |
| Wetted Material | Stainless Steel |
Features
- High viscosity mixing capability with 1.75 HP motor
- Expanding blade design for effective agitation
- Bung-mounted for sealed container applications
- Angle adapter included for reduced vortexing and off center mounting
- Air-driven operation
- Stainless steel construction for durability
Applications
- Foam
- Polyurea
- General Finishing
- Any sealed container with 1-1/2 inch or 2 inch bung access
- Drum mixing applications
- High viscosity fluid mixing
Compatible Equipment
- 1.5" drum bungs
- 2" drum bungs
Related Parts
- 24C728 - Low Viscosity, 1 HP
- 24C860 - Small Blade Assembly Kit
- 24C861 - Large Blade Assembly Kit
- 16H294 - Angle Adapter
- 16H295 - Angle Adapter Locking Ring
- 24C728
Kit Contents
- Angle adapter for reduced vortexing and off center mounting
Part of a family with low viscosity option (24C728). Blade assembly kits available to customize configuration. Noise levels tested in water to ISO 9614-2 standard. This is the high viscosity version with 1.75 HP compared to the low viscosity 24C728 model with 1 HP. Instruction manual: 313643 This is the high viscosity version of the expanding blade agitator, rated for materials up to 2,000 cps viscosity. The low viscosity version (24C728) is rated for 1,000 cps.
