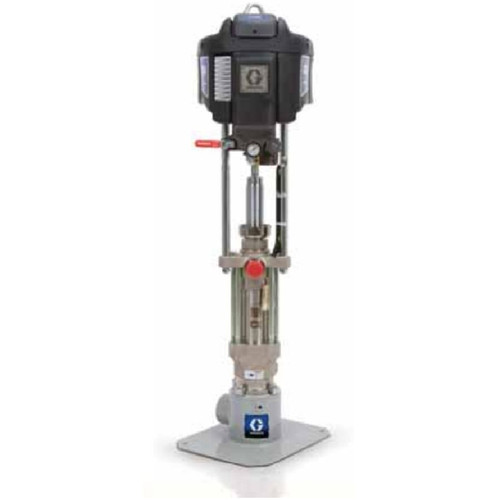

GRACO 24E011 - N x T Check-Mate 68:1 Floor Standing Oil Pump without DataTrak & Thermal Relief Ki

Check-Mate 68:1 grease pump floor stand package without DataTrak for high-pressure grease dispensing applications. Features floor stand mounting (223952) for stable operation and precise grease delivery in industrial and automotive service environments.

Specifications

• Ratio: 68:1
• Flow Rate: 22.8 lbs/min (10.4 kg/min) at 60 CPM
• Max Working Pressure: 5300 psi (365.5 bar) maximum fluid pressure
• Material: CS (Carbon Steel)
• Output Per Cycle: 200cc
• Motor Size: NXT 6500
• Maximum Air Input Pressure: 78 psi (5.4 bar)
• Pump Outlet Size: 1 in npt (f)
• Mounting: Floor Stand (223952)
• Nxt Air Motor Size: 6500
• Lower Size: 200 cc
• Floor Stand Or Ram: Floor Stand
• Ratio: 68:1
• Max Working Pressure Air Mpa: 0.54
• Max Working Pressure Air Bar: 5.38
• Max Working Pressure Fluid Mpa: 36.5
• Max Working Pressure Fluid Bar: 365.4
• Designation: SD

Features

• 68:1 pressure ratio for high-pressure applications
• Floor stand mounting for stability
• 200cc output per cycle
• NXT 6500 motor
• 1 inch NPT female outlet
• No DataTrak monitoring system (cost-effective option)

Applications

• Industrial grease dispensing
• Automotive service applications
• Heavy-duty lubrication systems
• High-pressure grease delivery

Compatible Equipment

• NXT 6500 motor systems
• 1 in x 6 ft fluid hose (244657 - 1" x 6 ft Fluid Hose, 1" OD)
• 3/4 in x 6 ft air hose (208610 - Air/Water Hose, 3/4 ft, x 6 ft (3/4" x 3/4" End Fittings) 180 PSI)
• NXT Air Motor Size 6500

Related Parts

• 24E006 - 14:1 package w/o DataTrak
• 24E007 - 26:1 package w/o DataTrak
• 24E008 - 29:1 package w/o DataTrak
• 24E009 - 55:1 package w/o DataTrak
• 24E010 - 63:1 package w/o DataTrak
• 247978 - 68:1 package with DataTrak
• 244657 - 1 in x 6 ft fluid hose
• 208610 - 3/4 in x 6 ft air hose

Kit Contents

• P68DCS - Pump w/o DataTrak
• 223952 - Floor Stand

GRACO recommends 20 GPM or less for supply applications. This is the non-DataTrak version of the 68:1 floor stand package, providing a cost-effective solution without monitoring capabilities. Model without Data Trak, with De-Icing. Notice: To prevent damage to Data Trak soft key buttons, do not press the buttons with sharp objects such as pens, plastic cards, or fingernails. This appears to be a pump with 68:1 ratio and 6400/200 pressure rating. SD designation may indicate specific configuration. Compatible with model 247978 floor stand system.

Reference Manuals

• 339719 (Page 2) Supply Systems
• 312863 (Page 2) Oil Pump System
