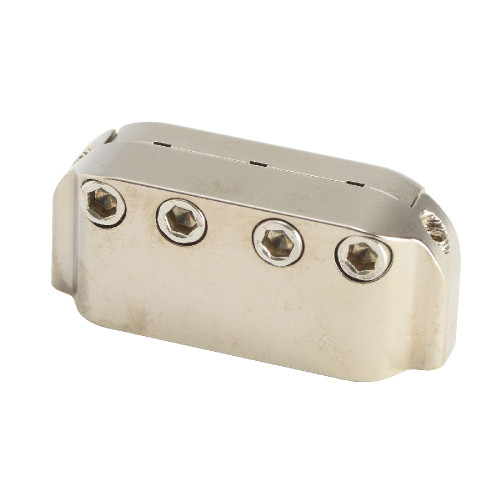

GRACO 24E416 - Kit, Clamp, Needle Assemblys
Needle clamp assembly kit for GRACO RS spray guns, providing secure needle positioning and proper sealing for consistent spray patterns and material flow control in professional coating applications.
Features
- Assembly kit for easy maintenance
- Ensures proper needle clamping
- Maintains spray gun performance
- Professional-grade components
- Needle clamp assembly kit
- Ensures proper needle positioning
Applications
- Spray gun repair and maintenance
- RS spray gun maintenance
- Professional coating applications
- Industrial spray finishing
- Gel coat application
- Chop gun operations
Compatible Equipment
- RS Guns (258853 - Rs Internal Mix Gel Coat Gun w/ Cst521 Tip, 258840 - Rs External Mix Gel Coat Gun, Cst521 Tip, 258971 - RS Internal Mix Chop Gun w/ Cutter, CST443 Tip, 258970 - RS External Mix Chop Gun w/ Cutter & Tip, 258954, 258952), RS Internal and External Mix Guns, RS Gel Coat Guns, RS Chop Guns, GRACO spray guns with needle assemblies
Related Parts
- 24E415 - Solvent/AAC Fitting Kit
- 24E417 - Complete Needle Assembly Kit
- 24E418 - Needle Assembly Repair Kit
- 24E419 - AAC Needle Kit
- 24E420 - Catalyst Seat Kit
- 24E421 - Kit, Seat, Resin, Resin
- 24E422 - Kit, Adapter, Cutter
- 24E423 - Kit, Housing, Check, Cat, Ext Mix
- 24E424 - Check Valve Housing Kit
- 24E425 - Air Valve Trigger Kit
This is an ordering information page with limited product details. The part is listed among other gun repair kits numbered in the 24E4xx series. Part of the comprehensive RS Gun Parts family for maintaining and servicing GRACO RS spray gun systems Listed under Head Assemblies section in Gun Kits category. Specific kit contents and detailed specifications not provided on this catalog page.
Reference Manuals
- 340712 (Page 7) RS Resin Spray Guns Brochure
- 348529 (Page 2) RS Resin Spray Guns - Why Buy?
- 348645 (Page 10) FRP Systems
- 349820 (Page 10) FRP Systems Brochure
- 3A0232 (Page 39) RS Gun and Cutter, Operation-Repair
