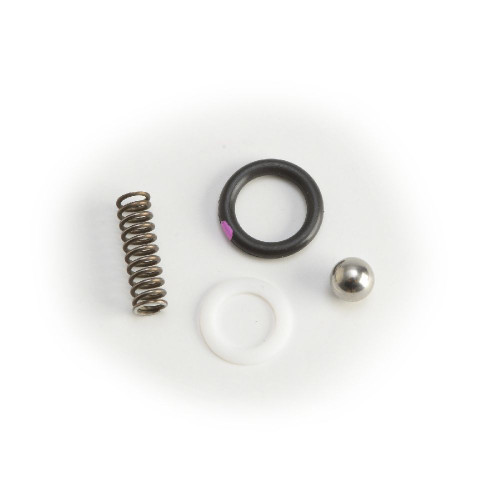

GRACO 24E447 - Kit, Repair, Frnt Hd, Ext, Check

Front head external check valve repair kit designed to restore proper function and sealing of external check valves in RS spray gun front head assemblies, ensuring reliable material flow control and preventing backflow in professional coating applications

Features

• Repair kit for front head external check valve
• Restores proper check valve operation
• Prevents material backflow
• Repairs external check valve function
• Restores proper sealing
• Maintains spray gun performance

Applications

• Spray gun maintenance
• Check valve repair
• Industrial coating applications
• RS spray gun maintenance
• Front head check valve repair
• Professional coating equipment service

Compatible Equipment

• RS spray guns with external mix front heads
• External mix chop guns
• External mix gel coat guns
• RS spray gun systems with external front head check valves

Related Parts

• 24E415 - Solvent AAC assembly fitting kit
• 24E416 - Needle clamp assembly kit
• 24E417 - Complete needle assembly
• 24E418 - Needle repair kit
• 24E419 - Needle AAC kit
• 24E420 - Catalyst Seat Kit
• 24E421 - Resin Seat Kit
• 24E422 - Cutter adapter kit
• 24E423 - Catalyst check valve
• 24E424 - Check valve housing kit

This page shows only basic product listings. Detailed specifications, kit contents, and compatibility information would require additional product documentation. This is a repair kit specifically for external check valves in RS gun front head assemblies. Works in conjunction with other front head components to maintain proper spray gun operation. Part of the RS Gun Parts Head Assemblies product line for spray gun maintenance and repair

Reference Manuals

• 340712 (Page 7)
• 348529 (Page 2)
• 348645 (Page 10)
• 349820 (Page 10)
• 3A0232 (Page 49)
