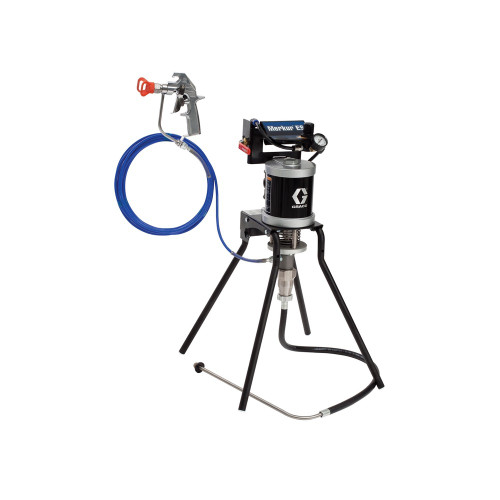

GRACO 24F155 - 30:1 Merkur ES Airless Package, 0.4 gpm fluid flow, standard mount, w/ PerformAA 50 Airless gun, suction hose, & plated steel, 3000 PSI
Professional 30:1 airless spray package designed for high-quality finishing applications, featuring the Merkur ES pump system with PerformAA 50 airless gun for superior atomization and finish quality
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Low profile spray package makes it easy to transport
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
Additional Specifications
- Flow Rate: 0.4 gpm (1.5 lpm)
- Max Working Pressure: 3000 PSI (20.7 MPa, 207 bar)
- Material: plated steel
- Maximum Cycle Rate: 240 cycles per minute
- Maximum Tip Orifice Size: 0.019 in (0.483 mm)
- Volume Per Cycle: 0.2 oz (6 cc)
- Maximum Air Inlet Pressure: 100 PSI (0.7 MPa, 7.0 bar)
- Air Consumption: 7 scfm
- Package Air Inlet Size: 3/8 NPTf
- Series: B
- Gun: PerformAA 50 Airless
- Mounting: Stand
| Convertible | Non-Convertible |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | Silver Plus Gun |
| Gun Technology | Airless |
| Gun Type | Airless |
| Hose Inlet Diameter (in) | 1/8 |
| Includes | Silver Plus Gun, Suction Hose, Stand Mount |
| Maximum Flow Rate (GPM) | 0.40 |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Airless |
| Standards Met | ATEX, CE |
| Type | Airless Sprayer |
| Weight (lb) | 25 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Polyethylene, Polyurethane, Nylon, Fluoroelastomer |
Features
- 30:1 air-assist package for superior atomization
- Includes PerformAA 50 airless gun for professional finish quality
- Plated steel construction for durability
- Standard mount configuration
- Complete package with fluid hose and air hose included
Applications
- Professional finishing applications
- High-quality coating applications requiring superior atomization
- Applications requiring airless spray technology
Compatible Equipment
- Standard wall or stand mounting systems
- PerformAA 50 Airless gun system
- Merkur ES
Related Parts
- 24F154 - 30:1 Merkur ES Airless Package, 0.4 gpm fluid flow, wall mount, w/ PerformAA 50 Airless gun, suction hose, & plated steel
- 24F152 - 30:1 Merkur ES Air Assisted Package, 0.4 gpm fluid flow, wall mount, w/ PerformAA 50 gun, suction hose, & stainless steel, 3000 PSI
- 24F153 - 30:1 Merkur ES Air Assisted Package, 0.4 gpm fluid flow, standard mount, w/ PerformAA 50 gun, suction hose, & stainless steel, 3000 PSI
- 24F156 - 30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, wall mount, w/ PerfermAA 50 gun, suction hose, & plated steel, 3000 PSI
- 24F157 - 30:1 Merkur ES Air Assisted Package, 0.4 gpm fluid flow, standard mount, w/ PerformAA 50 gun, suction hose, & plated steel, 3000 PSI
- 24W285 - 30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, w/ PerformAA 50 gun, hopper, & plated steel, 3000 PSI
- 24W287 - 30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, w/ PerformAA 50 gun, hopper, & stainless steel, 3000 PSI
- 24F150 - 15:1 Merkur ES Air Assisted Package, 0.4 gpm fluid flow, wall mount, w/ PerformAA 15 gun, suction hose, & plated steel, 1500 PSI
- 24F151 - 15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, w/ PerformAA 15 gun, suction hose, & plated steel, 1500 PSI
- 24F158 - 15:1 Merkur ES Air Assisted Package, 0.4 gpm fluid flow, wall mount, w/ PerformAA 15 gun, suction hose, & stainless steel, 1500 PSI
Kit Contents
- PerformAA 50 airless gun
- 25 ft (7.5 m) fluid hose
- AMI515 air hose
- 24H102 - BRACKET, wall
- 24F164 - KIT, stand; includes items 3, 4, 5, 6, and 418 on page 40
- 108175 - PLUG (qty 4)
- 100058 - SCREW, cap, hex hd; 1/4-20 x 1.5 in. (38 mm) (qty 6)
- 100015 - NUT, hex; 1/4-20 (qty 6)
- 24G694 - MOTOR, air; see page 36
- 24G707 - KIT, rod, tie; includes rods and items 11 and 17 (3 of each)
- 24H103 - SPRING, safety
- 24H104 - ADAPTER, pump lower
- 104541 - NUT, lock (qty 3)
- 24G701 - LOWER, pump; see page 33; also includes items 15, 18, and 19
- 195150 - NUT, jam
Part of the Merkur ES 30:1 Airless Packages family. All Airless Packages include a 25 ft (7.5 m) fluid hose and an AMI515 tip. Part of Series B airless packages with 30:1 ratio and 3000 PSI maximum working pressure Complete package pump assembly with wall bracket, stand kit, air motor, tie rod kit, pump lower assembly, suction hose kit, air control assembly, and grounding components
Reference Manuals
- 344878 (Page 4) Merkur ES Air-Assisted and Airless Spray Packages
- 3A0732 (Page 3) Merkur ES Spray Packages
