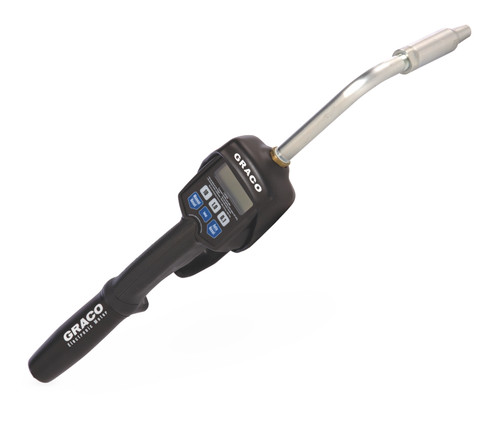

GRACO 24F884 - LDP5 Electronic Preset Meter - Rigid Extension - 1/2" Inlet - Trigger Guard & Swivel Cover Included - BSPT

VALVE, metered, LDP5, BSPT, rigid ext, model 24H712; 24H724; 24H736; 24H748; 24H878; 24H890; 24H902; 24H914

Specifications

• Thread: BSPT
• Extension Type: rigid ext
• Impact Guard: included
• Swivel Cover: included
• Inlet Type: BSPT
• Meter Type: LDP5

Compatible Equipment

• LDP5
• Rigid Extension Kit: 239949 - Rigid Tube Extension Kit
• 24H712
• 24H724
• 24H736
• 24H748

Related Parts

• 255277 - LDP5 Electronic Preset Meter - Flexible Extension - 1/2" Inlet - Trigger Guard & Swivel Cover Not Included - NPT
• 256216 - LDP5 Electronic Preset Meter - Rigid Extension - 1/2" Inlet - Trigger Guard & Swivel Cover Included - NPT
• 258694 - LDP5 Electronic Preset Meter - Flexible Extension - 1/2" Inlet - Trigger Guard & Swivel Cover Included - NPT
• 24F883 - LDP5 Electronic Preset Meter - Flexible Extension - 1/2" Inlet - Trigger Guard & Swivel Cover Not Included - BSPT
• 24F886
• 24F889 - LDP5 Electronic Preset Meter - Flexible Extension - 1/2" Inlet - Trigger Guard & Swivel Cover Not Included - BSPP
• 24F890 - LDP5 Electronic Preset Meter - Rigid Extension - 1/2" Inlet - Trigger Guard & Swivel Cover Included - BSPP
• 24F892 - LDP5 Electronic Preset Meter - Flexible Extension - 1/2" Inlet - Trigger Guard & Swivel Cover Included - BSPP
• 24X465
• 26D917

Part of the LDP5 Electronic Preset Meter family with rigid extension configuration 24F884 is listed alongside models 256216, 24F890, and 26D917 as being compatible with Rigid Extension Kit 239949. The page shows exploded view diagrams of spray gun components with various torque specifications and assembly notes. Part of a family of metered valves with different thread types (NPT, BSPT, BSPP) and extension types (flex ext, rigid ext) for LDM5 and LDP5 meters

Reference Manuals

• 312668 (Page 3) LDP5 (Preset) Electronic Metered Dispense Valves
• 3A1335 (Page 30) LD Oil or Grease System Packages
