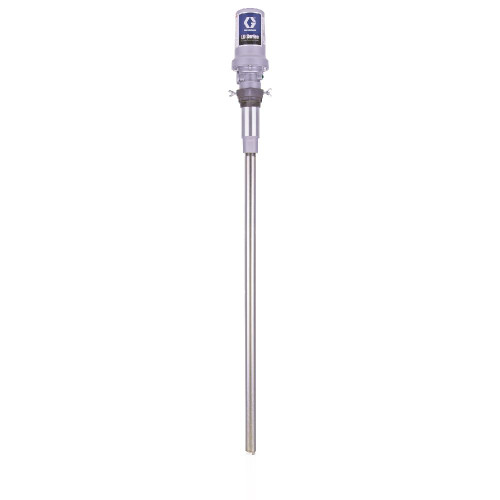

GRACO 24G587 - LD 3:1 Oil Pump w/ 275 Gallon Steel Down Tube & Bung Adapter - BSPT, 150 PSI

Specifications

• Thread: BSPT
• Max Working Pressure: Max air pressure: 150 PSI (1.03 Mpa, 10.3 bar), Max Fluid Pressure: 750 PSI (5.17 Mpa, 51.7 bar)
• Material: Steel
• Pump Ratio: 3:1
• Air Inlet: 1/4"-18 NPT
• Fluid Inlet: 1"-11.5 NPT
• Fluid Outlet: 1/2"-14 NPT
• Bung Adapter: 2" NPT(m)
• Container Capacity: 1040 liter (275gal) tote
• Tube Length: 275 Gallon capacity
• Pump Type: LD Oil Pump

Compatible Equipment

• 3:1 Oil Pump Models: 24G576 - 24G587

Related Parts

• 24G579 - LD 3:1 Oil Pump w/ Cut-to-Length Steel Down Tube & Bung Adapter
• 24G580 - LD 3:1 Oil Pump w/ Cut-to-Length Steel Down Tube & Bung Adapter - BSPP, 150 PSI
• 24G581 - LD 3:1 Oil Pump w/ Cut-to-Length Steel Down Tube & Bung Adapter - BSPT, 150 PSI
• 24G582 - LD 3:1 Oil Pump w/ 55 Gallon Down Tube & Bung Adapter - NPT, 450 PSI
• 24G583 - LD 3:1 Oil Pump w/ 55 Gallon Down Tube & Bung Adapter - BSPP, Metal, 150 PSI
• 24G584 - LD 3:1 Oil Pump w/ 55 Gallon Down Tube & Bung Adapter - BSPT, Metal, 150 PSI
• 24G585 - LD 3:1 Oil Pump w/ 275 Gallon Steel Down Tube & Bung Adapter - NPT, 150 PSI
• 24G586 - LD 3:1 Oil Pump w/ 275 Gallon Steel Down Tube & Bung Adapter - BSPP, 150 PSI
• 24G576 - LD Series 3:1 Universal Oil Pump w/ Bung Adapter - NPT
• 24G577 - LD Series 3:1 Universal Oil Pump w/ Bung Adapter - BSPP, 150 PSI

Kit Contents

• universal pump
• down tube

Includes universal pump and down tube, packaged separately. All oil models include a 2" NPT(m) bung adapter. 3:1 model is capable of the maximum fluid working pressure at certain operating conditions. This is part of the 3:1 Oil Pump Models series ranging from 24G576 to 24G587. Uses BSPT threading and includes steel down tube with bung adapter.

Reference Manuals

• 3A1334 (Page 2) LD Series Oil and Grease Pump
