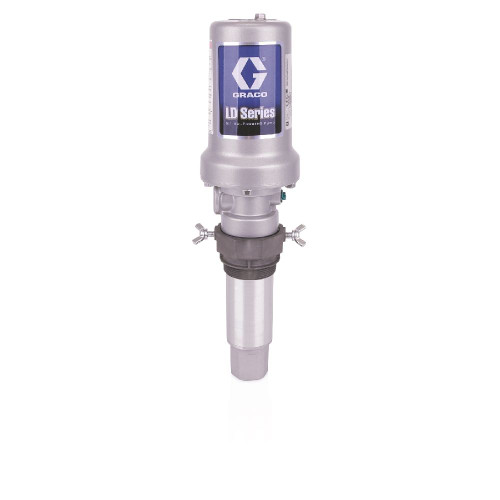

GRACO 24G590 - LD Series 5:1 Universal Oil Pump w/ Bung Adapter - BSPT, 150 PSI

PUMP, 5:1, Universal, BSPT, models 24H838, 24H841, 24H844, 24H847

Specifications

• Thread: BSPT
• Max Working Pressure: 150 PSI max air pressure, 750 PSI max fluid pressure
• Max Air Pressure Mpa: 1.03
• Max Air Pressure Bar: 10.3
• Max Fluid Pressure Mpa: 5.17
• Max Fluid Pressure Bar: 51.7
• Air Inlet: 1/4"-19 BSPT
• Fluid Inlet: 1-11 BSPT
• Fluid Outlet: 1/2"-14 BSPT
• Pump Ratio: 5:1
• Bung Adapter: 2" NPT(m)
• Series: LD Series Oil Pump
• Ratio: 5:1
• Type: Universal

Compatible Equipment

• LD Series Universal Oil Pump systems
• 24H838
• 24H841
• 24H844
• 24H847

Related Parts

• 24G588 - LD Series 5:1 Universal Oil Pump w/ Bung Adapter - NPT
• 24G589 - LD Series 5:1 Universal Oil Pump w/ Bung Adapter - BSPP, 150 PSI
• 24G591 - LD 5:1 Oil Pump w/ Cut-to-Length PVC Down Tube & Bung Adapter - NPT, 150 PSI
• 24G592 - LD 5:1 Oil Pump w/ Cut-to-Length Steel Down Tube & Bung Adapter - BSPP
• 24G593 - LD 5:1 Oil Pump w/ Cut-to-Length Steel Down Tube & Bung Adapter - BSPT, 150 PSI, 1/4"-19 BSPT
• 24G594 - LD 5:1 Oil Pump w/ 55 Gallon Steel Down Tube & Bung Adapter - NPT, 750 PSI
• 24G595 - LD 5:1 Oil Pump w/ 55 Gallon Steel Down Tube & Bung Adapter - BSPP, 150 PSI
• 24G596 - 24G596 LD 5:1 Oil Pump w/ 55 Gal. Steel Down Tube & Bung Adapter BSPT
• 24G597 - LD 5:1 Oil Pump w/ 275 Gallon Steel Down Tube & Bung Adapter - NPT, 150 PSI
• 24G598 - LD 5:1 Oil Pump w/ 275 Gallon Steel Down Tube & Bung Adapter - BSPP, 150 PSI

All oil models include a 2" NPT(m) bung adapter. This is a 5:1 ratio pump in the Universal category. This is a complete pump model in the 5:1 Oil Pump series (24G588-24G599). Uses specific O-Ring part for models 24G588-24G590 range. Part of the LD Series oil pump family. Part of the 5:1 Universal pump family, specifically for BSPT threaded models

Reference Manuals

• 3A1334 (Page 2) LD Series Oil and Grease Pump
• 3A1335 (Page 25) LD Oil or Grease System Packages
