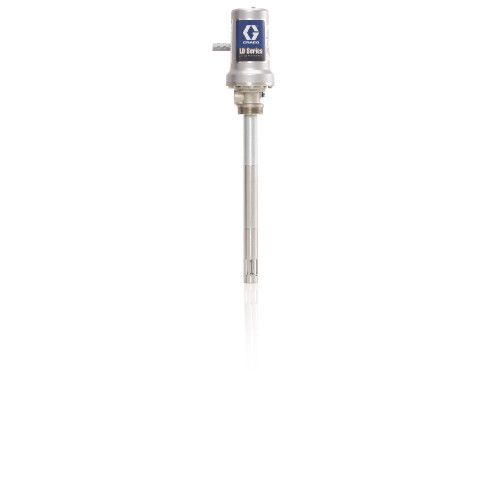

GRACO 24G601 - LD Series 50:1 Pump for 35 lb. Pail - BSPP, 150 PSI
PUMP, 50:1, BSPP, 35 pound (15.8 kg), models 24J031; 24J034, 24R345, 24R348
Specifications
- Thread: BSPP
- Max Working Pressure: Max Air Pressure: 150 PSI (1.03 Mpa, 10.3 bar), Max Fluid Pressure: 7500 PSI (51.7 Mpa, 517 bar)
- Pump Ratio: 50:1
- Container Capacity: 16kg (35lb)
- Air Inlet: 1/4"-19 BSPP
- Fluid Inlet: Priming piston
- Fluid Outlet: 1/4"-19 BSPP
- Container Size: 35 pound (15.8 kg)
Compatible Equipment
- 35 lb pail
- 24J034 - LD Series 50:1 35 lb Grease Drum CE Pump Package - BSPP
- 24R345
- 24R348
Related Parts
- 24G600 - LD Series 50:1 Pump for 35 lb (16 kg). Pail - NPT, 150 PSI
- 24G602 - LD Series 50:1 Pump for 35 lb. Pail - BSPT, 150 PSI, 1/4"-19 BSPT
- 24G603 - LD Series 50:1 Pump for 120 lb. Pail - NPT, 150 PSI, 1/4"-18 NPT
- 24G604 - LD Series 50:1 Pump for 120 lb. Pail - BSPP, 150 PSI
- 24G605 - LD Series 50:1 Pump for 120 lb. Pail - BSPT, 150 PSI, 1/4"-19 BSPT
- 24G606 - LD Series 50:1 Pump for 400 lb Pail-NPT, 750 PSI, NPS
- 24G607 - LD Series 50:1 Pump for 400 lb. Pail - BSPP, 150 PSI, 1/4"-19 BSPP
- 24G608 - LD Series 50:1 Pump for 400 lb. Pail - BSPT, 150 PSI, 1/4"-19 BSPT
- 24X871
This is a 50:1 pump designed for 16kg (35lb) containers with BSPP threading connections Part of a pump family with different thread types (NPT/BSPP/BSPT) and container sizes (35 lb to 400 lb)
Reference Manuals
- 3A1334 (Page 3) LD Series Oil and Grease Pump
- 3A1335 (Page 37) LD Oil or Grease System Packages
