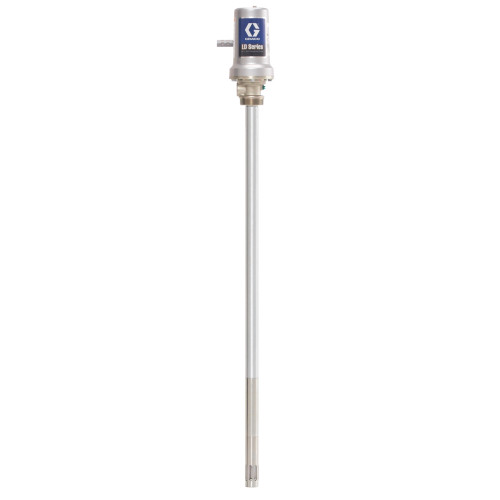

GRACO 24G607 - LD Series 50:1 Pump for 400 lb. Pail - BSPP, 150 PSI, 1/4"-19 BSPP
PUMP, 50:1 BSPP, 400 pound (180 kg), model 24J055, 24J058, 24J067, 24J070
GRACO 24G607 LD Series 50:1 Pump for 400 lb (180 kg). Pail - BSPP
The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
Additional Specifications
- Thread: 1/4"-19 BSPP
- Max Working Pressure: Max Air Pressure: 150 PSI (1.03 Mpa, 10.3 bar), Max Fluid Pressure: 7500 PSI (51.7 Mpa, 517 bar)
- Container Capacity: 400 pound (180 kg)
- Air Inlet: 1/4"-19 BSPP
- Fluid Inlet: Priming piston
- Fluid Outlet: 1/4"-19 BSPP
- Container Size: 400 pound (181 kg)
- Pump Type: BSPP
| TYPE | Pneumatic Piston Pump |
|---|
| AIR INLET SIZE (CM) | 0.635 |
|---|
| AIR INLET SIZE (IN) | 1/4 |
|---|
| AIR INLET SIZE (MM) | 6.35 |
|---|
| APPLICATION | Grease |
|---|
| COMPATIBLE MATERIAL | Grease |
|---|
| FLUID OUTLET SIZE (CM) | 0.635 |
|---|
| FLUID OUTLET SIZE (IN) | 1/4 |
|---|
| FLUID OUTLET SIZE (MM) | 6.35 |
|---|
| MAXIMUM AIR INLET PRESSURE (BAR) | 10.34 |
|---|
| MAXIMUM AIR INLET PRESSURE (KPA) | 1034 |
|---|
| MAXIMUM AIR INLET PRESSURE (PSI) | 150 |
|---|
| MAXIMUM WORKING PRESSURE (BAR) | 517 |
|---|
| MAXIMUM WORKING PRESSURE (KPA) | 51700 |
|---|
| MAXIMUM WORKING PRESSURE (PSI) | 7500 |
|---|
| MODEL | LD |
|---|
| POWER TYPE | Pneumatic |
|---|
| PUMP RATIO | 50:1 |
|---|
| WEIGHT (LB) | 17 |
|---|
| WETTED MATERIAL | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
|---|
| WEIGHT (KG) | 0.7718 |
|---|
| MAXIMUM WORKING PRESSURE (MPA) | 51.7 |
|---|
Compatible Equipment
Related Parts
- 24G600 - LD Series 50:1 Pump for 35 lb (16 kg). Pail - NPT, 150 PSI
- 24G601 - LD Series 50:1 Pump for 35 lb. Pail - BSPP, 150 PSI
- 24G602 - LD Series 50:1 Pump for 35 lb. Pail - BSPT, 150 PSI, 1/4"-19 BSPT
- 24G603 - LD Series 50:1 Pump for 120 lb. Pail - NPT, 150 PSI, 1/4"-18 NPT
- 24G604 - LD Series 50:1 Pump for 120 lb. Pail - BSPP, 150 PSI
- 24G605 - LD Series 50:1 Pump for 120 lb. Pail - BSPT, 150 PSI, 1/4"-19 BSPT
- 24G606 - LD Series 50:1 Pump for 400 lb Pail-NPT, 750 PSI, NPS
- 24G608 - LD Series 50:1 Pump for 400 lb. Pail - BSPT, 150 PSI, 1/4"-19 BSPT
- 24X871
Part of the LD Series 50:1 grease pump family with BSPP threading for 400 lb containers This is a 50:1 ratio pump designed for 400 pound containers with BSPP threading, compatible with models 24J043 and 24J046 This is part of the Cart, Metered Valve Only series for 400 pound (180 kg) grease applications with no CE marking
Reference Manuals
