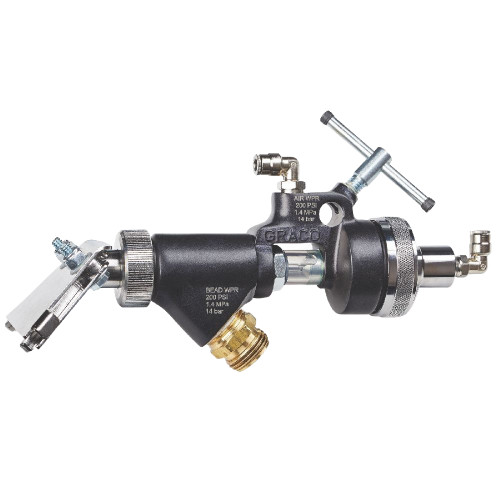

GRACO 24G979 - Double Acting Bead Spray Gun for RoadLazer RoadPak, 200 PSI
GRACO's high-quality double-acting automatic bead gun designed for professional striping contractors. Features air actuated 'on' and 'off' control allowing for total control of the gun with crisp shut-offs, making it ideal for precise bead application in road marking operations.
Specifications
- Max Working Pressure: 200 PSI (1.38 MPa, 13.8 bar) Maximum Working Pressure
- Actuation Type: Double-acting air actuated
Features
- Double-acting design with air actuated on/off control
- Total control of gun operation with crisp shut-offs
- High-quality and trouble-free design
- Go-to gun for striping contractors worldwide
Applications
- Road striping and marking
- Bead application for reflective road markings
- Professional striping contractor operations
Compatible Equipment
- RoadLazer RoadPak Line Striping System
- RoadLazer
Related Parts
Kit Contents
- 191201 - SEAT, valve
- 191196 - NUT, retaining
- 191206 - HOUSING, valve
- 166847 - HOUSING, valve
- 25D347 - TOOLESS, handle, gun
- 16G708 - CAP, cylinder
- 16G763 - SPRING, compression
- 16G169 - GUIDE, spring
- 164741 - PISTON, air
- 156593 - O-RING, nitrile rubber
- 155685 - PACKING, o-ring
- 191195 - TUBE, protection
- 102300 - NUT, jam, 7/8 inc. hex
- 158486 - PACKING, o-ring
- SEAL, needle
Part of GRACO's automatic gun family specifically designed for bead application in road marking operations For the application of road marking reflective materials - For professional use only RoadLazer ships with 3 Valve Seat and O-Ring kits listed in the following table. Some parts are included in Repair Kit 238340.
Reference Manuals
- 3J0419EN (Page 7) EN-A
- 3J0419EN - A (Page 6)
- 308612 (Page 1) Single Acting and Double Acting Bead Spray Guns for RoadLazer™ RoadPak™ Line Striping System, Operation
- 3A1306 (Page 3) Additional Gun Kit for RoadLazer RoadPak Line Striping System, 25D642
- 3A1308 (Page 4) Double Drop Kit / Additional Bead Gun Kit for RoadLazer RoadPak Line Striping System, 24G775
