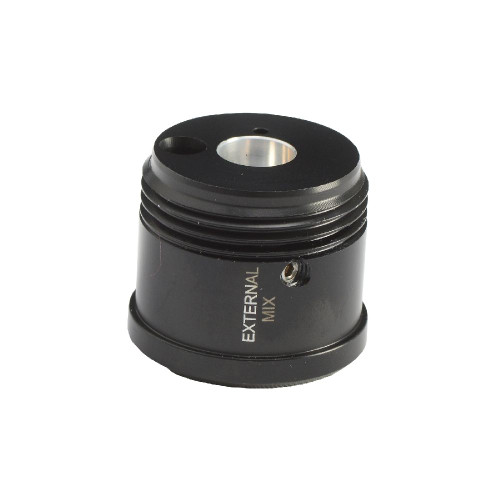

GRACO 24H336 - External Mix High Flow Kit

External Mix High Flow Kit designed for high-volume spray applications requiring increased material flow rates. This kit upgrades standard spray guns to handle higher viscosity materials and larger spray patterns for improved productivity in industrial coating applications.

Specifications

• Flow Rate: High Flow
• Kit Type: External Mix High Flow
• Flow Type: High Flow

Features

• High flow capability
• External mix design
• Kit format for easy installation
• Compatible with RS gun systems
• External mix design for versatility
• High flow capability for increased productivity

Applications

• Industrial coating
• High-volume spray applications
• External mix spray operations
• High-volume coating applications
• Viscous material spraying
• Large area coverage

Compatible Equipment

• RS Gun systems
• RS Gun series
• GRACO RS spray guns

Related Parts

• 24H337 - Internal Mix High Flow Kit
• 24E512 - Cutter assembly
• 24R482 - Cutter Head Assembly
• 24R6060 - 100-Pack of Cutter Blades
• 123672 - Anvils
• 16K768 - RS RTM and Pour Adapter
• 24E502 - Cutter assembly
• 24E512 - External Mix Cutter Head Kit
• 24H335 - Internal Mix High Flow Kit
• 24G564 - Atomizing Orifice 2 hole feeder insert

This is listed as part of the RS Gun Parts family and appears to be specifically designed for external mix applications requiring higher flow rates than standard configurations Part of the RS Gun Parts family, specifically categorized under Head Assemblies for external mix high flow applications Part of the RS Gun Parts family. Complements the Internal Mix High Flow Kit (24H337) for complete high-flow spray gun capabilities.

Reference Manuals

• 348529 (Page 2) RS Resin Spray Guns - Why Buy?
• 348645 (Page 10) FRP Systems
• 349820 (Page 10) FRP Systems Brochure
• 3A0232 (Page 2) RS Gun and Cutter, Operation-Repair
