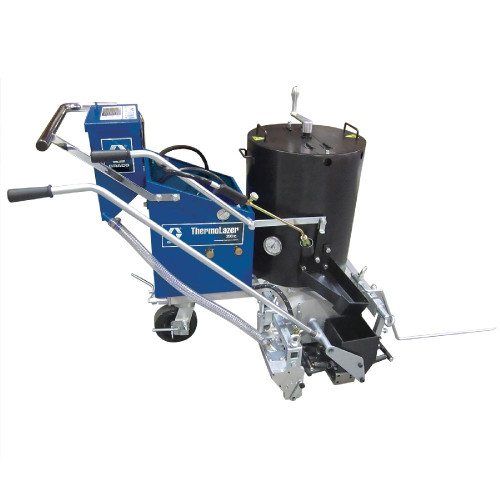

GRACO 24H624 - ThermoLazer ProMelt Thermoplastic Striping System

ThermoLazer ProMelt thermoplastic melting system designed for road striping and pavement marking applications. Features a Tri-Flame die heater system with 100,000 BTU main burners for efficient material melting. Includes QuadMelt melt chamber and QuadMix internal mixing paddles for consistent material preparation. Equipped with SmartDie II technology and temperature limit control for precise application.

The ThermoLazer ProMelt unit is your solution for first-time stripers wanting to get into the highly profitable thermoplastic marking business, as it lets you avoid the additional costs of adding a premelt kettle truck or trailer, thus saving you time and labor, resulting in more money in your pocket. Graco's breakthrough technology allows you to melt 300 lbs of thermoplastic on board in less than an hour.

• Ease-Z-Steer Handle Bar System
  • Makes turning and handling as simple as a LineLazer System
  • Adjustable handle bar for users of all sizes
• ProMelt Technology
  • 4 Chamber Melting System—More surface area to melt thermoplastic fast
  • 100,000 BTUs—Faster melt time means more jobs get done everyday
• SmartDie II System
  • Fast change-out system—Hardened steel dies with mil thickness adjustment system built in
  • Use with or without heat—Allows you to optimize your striping in all weather conditions
  • "Floats" with the surface—Puts the thermoplastic where you want it for superior line quality
  • External Heat System—4-torch die heat system keeps it hot
• Ergonomic Design
  • Easier to use and almost effortless to push/pull, just like the proven LineLazer design
• Optional LineDriver System
  • Get higher productivity and straighter lines with less fatigue
  • Move between jobs without having to push
  • Patented Dual Pedal System—Multiple positions allow for simple forward and reverse

Additional Specifications

• Fuel Source: LP Gas (LP Tank NOT Included)
• Lid System: DualMix System - Raised, Single Lid
• Die Heater System: Tri-Flame
• Main Burners: 100,000 BTU
• Material Capacity: 135 kg (300 lbs)
• Bead Hopper Capacity: 40 kg (90 lbs)
• Weight: 157 kg (345 lbs)
• Melt Time 135Kg: Less than 1 hour
• Temperature Limit Control: 475°F Switch
• Melt Chamber Capacity: 300 lb (136 kg)
• Melt Time: 1 - 1.5 hours max (135 kg without premelter)
• Main Burner Btu: 100,000 BTU Dual
• Compatible Dies: SmartDie II
• Fuel: LP gas (LP tank not included)
• Melt Chamber: QuadMelt
• Bead Dispense System: 30 cm with 2.5 cm doors

Specifications

Features

• DualMix System with raised, single lid design
• Tri-Flame die heater system for consistent heating
• 100,000 BTU main burners for efficient melting
• 135 kg (300 lb) material capacity for extended operation
• 475°F temperature limit control switch
• Less than 1 hour melt time for 135kg thermoplastic

Applications

• Thermoplastic striping operations
• Road marking and line striping
• Professional pavement marking
• High-capacity material dispensing
• Road marking and striping
• Thermoplastic line application

Compatible Equipment

• ThermoLazer accessories
• LineDriver systems
• Various ThermoLazer attachments and accessories listed in catalog
• SmartDie II dies
• LP Gas fuel systems
• LineDriver system (optional)

Related Parts

• 24H622
• 24H619
• 24H620
• 262004 - LineDriver Ride-On Attachment
• 262005 - Linedriver Hd Ride-On Attachment, Prostart Starting System
• 24H622 - ThermoLazer 300tc System bare unit
• 24U800 - ThermoLazer 200tc System bare unit
• 24H623 - ThermoLazer ProMelt w/ 4 in die
• 18B400 - ThermoLazer ProMelt w/ 4.75 in die, 24R762 through 24R768 - Various die sizes

LP tank not included with system. Part of the ThermoLazer ProMelt system family designed for professional thermoplastic striping applications. This is the bare unit without die. LP tank not included. Part of the ThermoLazer ProMelt System family which offers the fastest melt times and highest BTU output of the three ThermoLazer models. LP tank not included. LineDriver Compatible feature is optional.

Reference Manuals

• 340283 (Page 4)
• 344507 (Page 7)
• TLProMelt_ENEU-C (Page 2)
• 332742 (Page 1)
• 332743 (Page 1)
