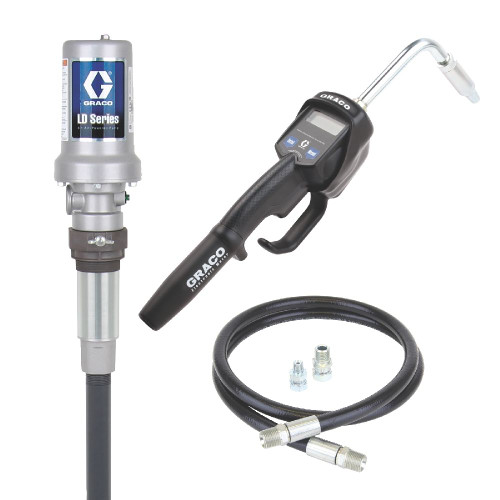

GRACO 24H964 - LD Series 5:1 Stationary Oil Pump Package - Manual Meter
VALVE, metered, LDM5, NPT, flex ext, models 24H799; 24H811; 24H964; 24H976
Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-Rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.
Additional Specifications
- Thread: NPT
- Connection Type: NPT
- Valve Type: metered
- Valve Extension: Flex
- Pump Type: Universal
- Extension Type: flex ext
| Air Inlet Size (in) | 0.25 |
| Application | Oil |
| Compatible Material | Oil |
| Fluid Inlet Size (in) | 1 |
| Fluid Outlet Size (in) | 1/2 |
| Maximum Flow Rate (GPM) | 6.7 |
| Maximum Working Pressure (MPa) | 5.2 |
| Maximum Working Pressure (psi) | 750 |
| Number of Pieces | 4 |
| Power Type | Pneumatic |
| Pump Ratio | 5:1 |
| Type | Piston Pump Package |
| Wetted Material | Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum |
Compatible Equipment
- Drum Mounted applications
- 24H964 - 24H967
- 24H976 - 24H979
- 25C554 - 25C557
- 24H799
- 24H811
Related Parts
- 24H965
- 24H966
- 24H967
- 24H968
- 24H969
- 24H970
- 24H971
- 24H972
- 24H973
- 24H974
Part of the 5:1 Oil Models series for drum mounted applications. Does not include CE certification or Drum Dolly features. Part 24H964 appears as the starting model in the 5:1 Oil Not CE Marked series (24H964 - 24H975). It's also referenced in fluid hose kit 24H859 for NPT models and PVC tube 16F878 for LD pump models. This is part number 255751 - a metered valve with LDM5 series, NPT threading, and flexible extension that is compatible with model 24H964 among others
