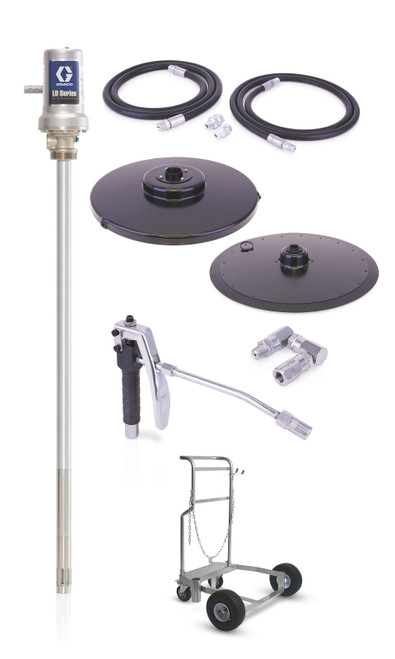

GRACO 24J055 - LD Series 50:1 400 lb Grease Cart Mounted Pump Package - BSPP

PUMP, 50:1 BSPP, 400 pound (180 kg), model 24J055, 24J058, 24J067, 24J070

Specifications

• Thread: BSPP
• Max Working Pressure: 400 pound (180 kg)
• Ratio: 50:1
• Capacity: 400 pound (181 kg)
• Mounting: Cart Mounted
• Pump Type: BSPP

Compatible Equipment

• BSPP threaded connections
• 24J055 - LD Series 50:1 400 lb Grease Cart Mounted Pump Package - BSPP
• 24J058
• 24J067
• 24J070
• 24J051 - LD Series 50:1 120 lb. Grease Pump - Mobile CE Package

Related Parts

• 24J054 - LD Series 50:1 400 lb. Grease Pump - Mobile Package
• 24J056
• 24J057 - LD Series 50:1 Grease Pump 400lb Cart Mount Package, 1/4-18 NPT
• 24J058
• 24J059
• 24J066 - Mobile Grease Package 400lb. Drum w/LD 1/4" x 35' Reel
• 24J067
• 24J068
• 24J069
• 24J070

Kit Contents

• 24G607 - PUMP, 50:1 BSPP, 400 pound (180 kg)
• 24H863 - KIT, fluid, grease, BSPP, 6 ft (1.8 m)
• 24H674 - HOSE, fluid, grease, 6 ft (1.8 m), BSPP

This is a cart mounted grease model with BSPP thread type, part of the 50:1 400 pound capacity series Part of Cart, Metered Valve Only series. Referenced in pump part 24G607 and associated with fluid grease kit 24H863 and hose 24H674. Also appears in valve parts 125041, 24H419, 24H404, and 24H400 compatibility lists. This is a drum cover component for specific grease cart models. Reference number 16 in the diagram, part number 24N924, quantity 1.

Reference Manuals

• 3A1335 (Page 45) LD Oil or Grease System Packages
