GRACO 24J603 - Finex Air Spray Gravity Feed Side Cup Gun, conventional, 0.055" needle/ nozzle size, 100 PSI
Finex Side Cup Gravity Gun designed for lightweight, ergonomic air spray applications. Features conventional spray technology with optimized aircaps for high quality spray performance and integrated air inlet adjustment for precise control.

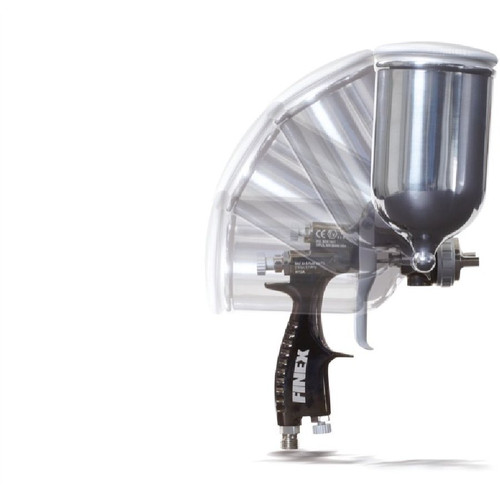

The Finex Side Cup Gun has a cup that swivels – ideal for end users spraying in tight spaces. Available in either HVLP or conventional technologies.
Easily spray small spaces and corners with the Finex gravity feed gun with swivel cup
- Aluminum cup is included with the gun
- Cup swivels for spraying in small spaces
- Light trigger pull for operator comfort
- Aircaps optimized for high quality spray performance
- Integrated air inlet adjustment (cheater) valve
Additional Specifications
- Max Working Pressure: 100 PSI (7 bar, 0.7 MPa) maximum air inlet pressure
- Needle Nozzle Size: 0.055 (1.4) mm
- Gun Style: Side Cup Gravity Feed Conventional
- Needle Nozzle Air Cap Kit: 24J883
- Needle Packing Kit: 288891
- Gravity Cup Kit: 24J884 (400 cc or 13.5 oz Aluminum)
- Trigger Repair Kit: 24F061 (stainless steel)
- Spray Gun Type: Side Cup Gravity Feed - Conventional
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Side-Cup Gravity Feed |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1.2 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | Finex |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
- Side cup gravity feed design for easy material handling
- Conventional air cap technology for reliable spray patterns
- 0.055" needle/nozzle size for medium viscosity materials
- Aluminum gravity cup (400 cc/13.5 oz capacity)
- Stainless steel trigger repair components
- Compatible with standard needle packing kit
Applications
- General finishing applications
- Medium viscosity coatings
- Industrial spray finishing
- Automotive refinishing
- Air spray finishing applications
- Small space spraying
Compatible Equipment
- Standard finishing systems
- Air compressor systems up to 100 PSI
- Finex spray gun systems
- Gravity Feed Conventional gun style
Related Parts
- 24J601 - Finex Air Spray Gravity Feed Side Cup Gun, conventional, 0.039 in needle/ nozzle size, Stainless Steel
- 24J602 - Finex Air Spray Gravity Feed Side Cup Gun, conventional, 0.047 in needle/ nozzle size, Aluminum cup, 100 PSI
- 24J599 - Finex Air Spray Gravity Feed Side Cup Gun, HVLP .047" Needle/ Nozzle Size, Aluminum cup
- 24J600 - Finex Air Spray Gravity Feed Side Cup Gun, HVLP .055" Needle/ Nozzle Size, 29 PSI
- 24J884 - 400cc Aluminum Gravity Cup Kit
- 24F061 - Sharpe Trigger Repair Kit for 289247 HVLP Spray Gun & 289238 HVLP Spray Gun, Stainless Steel
- 24J881 - Needle, Nozzle, Aircap Kit
- 24J883 - Needle, Nozzle, Aircap Kit
Part of the Side Cup Gravity Feed Conventional gun family. Uses 24J883 needle/nozzle air cap kit and 24J884 aluminum gravity cup. Part of the Finex Side Cup Gravity Gun family. For additional information refer to manual 312388 and form 339461. Part of the Side Cup and Gravity Feed gun family with various needle/nozzle sizes ranging from 0.040mm to 0.055mm
