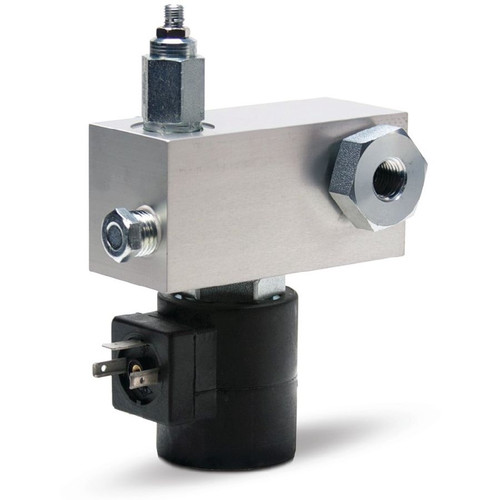

GRACO 24M480 - Direct-Mount Vent Valve for G3 Pumps - NPT 115 VAC 500-3500 psi

Item #: 24M480

Price: $481.00

QTY:

Most orders over $299
ship for free | See Details

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

Related Items

GRACO 24M480 Direct-Mount Vent Valve for G3™ Pumps - NPT, 115 VAC, 500-3500 psi , Normally Open, RH

Industry leading feature for your lube system needs.

Vent valves are designed to be mounted to the G3 Electric Lubrication Pump to make it simple to install your injector based lube systems.

Easily mounts to your G3 pump.
Eliminates time and material costs associated with remote mounted vent valves.
115 VAC
Normally Open
The normally open valve works with the G3 Standard no control pump. With an external control just add power to the pump and valve to run a lube cycle, and remove power from both to vent pressure.
Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.
DIN Power Connection

Specifications:

Application	On-Road Vehicles, Off-Road Equipment
Compatible Material	Grease
Factory Set Pressure (psi)	4000
For Use With	G3 Pumps
Inlet Thread Type	NPT
Maximum Flow Rate (GPM)	5
Maximum Working Pressure (MPa)	24
Maximum Working Pressure (psi)	3500
Outlet Thread Type	NPT
Relief Rate (GPS)	0.13
Type	Vent Valve
