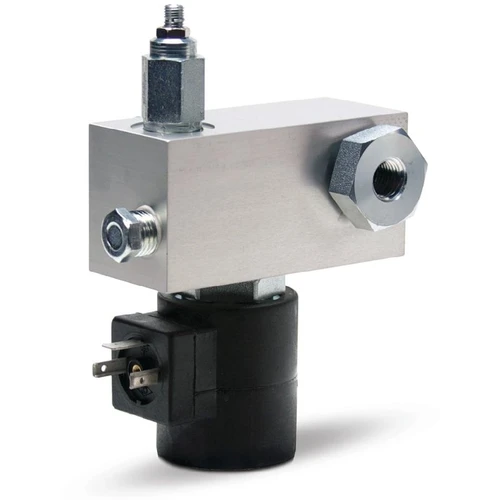

GRACO 24N182 - Normally Open Vent Valves for use w/ G3 Standard Pumps - NPT, 3500 PSI

Industry leading feature for your lube system needs.

Vent valves are designed to be mounted to the G3 Electric Lubrication Pump to make it simple to install your injector based lube systems.

• Easily mounts to your G3 pump.
• Eliminates time and material costs associated with remote mounted vent valves.
• 230 VAC
• Normally Open
• The normally open valve works with the G3 Standard no control pump. With an external control just add power to the pump and valve to run a lube cycle, and remove power from both to vent pressure.
• Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.
• DIN Power Connection

Additional Specifications

• Max Working Pressure: 3500 PSI (241 bar, 24 MPa)
• Voltage: 230 VAC
• Valve Type: Normally Open (NO)
• Connection Type: DIN

Compatible Equipment

• G3 Pumps

Related Parts

• 24M478
• 24M479
• 24M480
• 24M483
• 24M484
• 24T178
• 25A211

This is a kit for vent valve with 230 VAC voltage rating, normally open configuration, with NPT threading and DIN connection. Manual number is listed as NA. Used to reduce system pressure and allow injector to reset. For professional use only. This is a vent valve kit for 230 VAC applications. Related parts include other voltage variants: 24M478 (12 volt DC, NO, NPT DEU), 24M479 (24 volt DC, NO, NPT DEU), and 24M480 (115 VAC, NO, NPT DIN).

Reference Manuals

• 332291 (Page 36)
• 3A1963 (Page 1)
• 3A8847 (Page 35)
