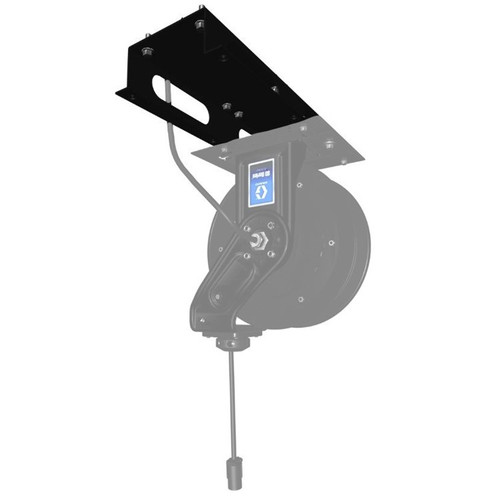

GRACO 24N675 - for Mounting Two SD Series Reel to Ceiling, 8 x 39=16 UNC Weld Nut
Specifications
- Length: 18.0 inch/457.2 mm
- Thread: 8 x 39=16 UNC-2B Weld Nut
- Mounting Type: Open Channel
- Reel Capacity: 2 Reels
- Size: Size 5
- Width: 7.75 inch/196.8 mm
- Mounting Hole Spacing Vertical: 6.75 inch/171.4 mm
- Mounting Hole Spacing Horizontal: 7.50 inch/190.5 mm each section
- Edge Margin: 0.50 inch/12.7 mm
- Center Gap: 1.5 inch/38.1 mm
Compatible Equipment
- Size 5 applications
- Size 5 Models mounted in Size 10 Model Mounting Channel
- Size 5 systems
- 2 reel mounting applications
Related Parts
- 24A935 - Hose Reel Mounting Channel Kit (Accommodates 2 Reels), 18.0"
- 203522 - Mounting Enclosed Reel for Ceiling Or Wall
- 24N674 - for Mounting One SD Series Reel to Ceiling
- 24A934 - SD Series Open Reel Mounting Channel Kit (Accommodates 1 Reel), 3/8-16 UNC
- 24A936 - Hose Reel Mounting Channel Kit (Accommodates 3 Reels), 107.00"
- 24A937 - Hose Reel Mounting Channel Kit (Accommodates 4 Reels)
- 24A938 - Hose Reel Mounting Channel Kit (Accommodates 5 Reels), 45.00"
- 24A939 - Hose Reel Mounting Channel Kit (Accommodates 6 Reels), 54.00"
- 203521 - Mounting Enclosed Reel for Ceiling or Wall
Kit Contents
- 101 - SCREW, 3/8" - 16 x 5/8" (10 pieces)
- 102 - WASHER, lock, 3/8" (10 pieces)
- 103 - BASE, reel, channel (1 piece)
- 104 - PLATE, hold down (2 pieces)
- 105 - BASE, plate (2 pieces)
This is a Size 5 Kit for 2 Reel Base mounting. Related Size 10 kits are 24A935 and 203522. Full specifications would be found on page 17 of this manual. Size 5 models require a specific hold down plate designed for Size 5 Cord Reels. Contact GRACO Customer Service for assistance when ordering these parts. For Size 10 Ceiling Mounting Without an I-Beam - Open Channel installation. This is a Size 5 Kit for mounting two reels, designed to work with the 2 Reel Base mounting channel system. Uses 8 x 39=16 UNC-2B Weld Nuts for mounting.
Reference Manuals
- 3A2592 (Page 2) SD Series Cord and Light Reel, Installation-Operation
