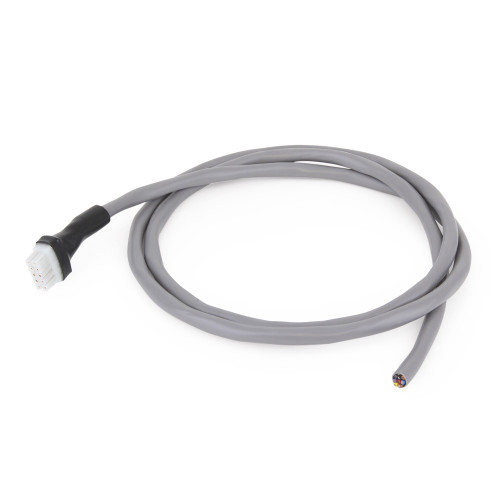

GRACO 24P314 - GLC 2200 Series Controller Wiring Harness - 150 cm (5 ft.), flying leads
5-foot color-coded flying leads wiring harness designed for the GLC 2200 controller, providing reliable electrical connections for heavy construction, mining, and mobile equipment applications in demanding industrial environments
- GLC 2200 wiring harness - 5 feet (150 cm) with flying leads
Additional Specifications
- Length: 5 feet (1.5 m)
- Wire Type: color-coded flying leads
| Application | In-Plant Machinery, Off-Road Equipment |
| For Use With | GLC 2200 |
| Includes | 5 ft Wiring Harness with flying leads |
| Type | Cable Harness |
Features
- Compatible with GLC2200 controller system
- Designed for electric module applications
- Works with EDS HP pump systems
- Color-coded for easy identification
- Flying leads design for flexible connections
- 5-foot length for versatile installation
Applications
- Dyna-Star pump electric module installations
- EDS HP pump control systems
- Autofill shut-off and low level monitoring systems
- Heavy construction
- Mining
- Off-road mobile equipment
Compatible Equipment
- GLC2200 controller
- EDS HP pump with Autofill shut-off and low level monitor
- Dyna-Star pump electric modules
- GLC 2200 controller (24N468)
- Electric Dyna-Star EDS HP Pump
Related Parts
- 77X960
- 77X990
- 77X202
- 77X203
- 129072 - Electrical Socket Cable
- 77X546
- 24N181 - High, Low Adjustable Pressure Switch, 1/4 NPT, IP65 Rated for Harsh Environments, Fluoroelastomer Seals, 5800 PSI
- 77X542 - Remote-Fill Port Manifold w/ Vent for use w/ Auto-Fill Shut-Off Option Lubrication Pumps, 5000 PSI
- 24N468 - GLC 2200 controller
Part of the Dyna-Star pump electric module system components This is an accessory component that works with the GLC 2200 controller system which operates on DC 9-30 VDC and has IP54 protection grade for industrial environments Listed as GLC2200 wiring harness in the Electric Dyna-Star system ordering information table. Works with both 60 pound reservoir systems (77X202/77X203).
Reference Manuals
- 300763 (Page 8) Automatic Lubrication
- 340969 (Page 2) GLC 2200 Controller
- 341046 (Page 3) Dyna-Star HP and Dyna-Star HF
- 352376 (Page 9) LubePro Series Pumps
- 353405 (Page 1) G-Mini GLC 2200 Wiring Diagram
