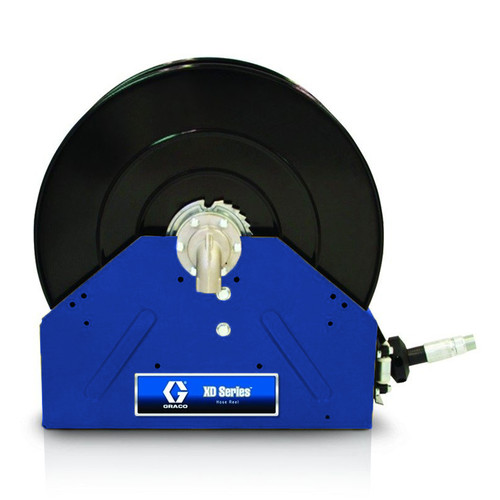

GRACO 24P476 - XD50 Oil 1" x 75 ft, Hose Reel, NPT, Blue, 1275 PSI

Heavy-duty XD 50 series hose reel designed for oil applications, featuring a durable blue powder-coated finish and reliable spring-driven retraction system for efficient fluid handling in industrial environments

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
• Meets Worldwide Needs - Built standard with 90° elbow with NPT threads

Additional Specifications

• Length: 75 ft (23 m)
• Max Working Pressure: 1275 PSI (88 bar)
• Operating Temperature: -20°F to 180°F (-28° to 82°C)
• Model Type: Model 3
• Color: Blue
• Model: Model 3
• Spring: A
• Hose Size: 1 in. x 75 ft
• Bare Reel Model: XD5010AMPF

Features

• XD50 heavy-duty reel construction
• High pressure rating of 1275 PSI
• 75-foot hose length for extended reach
• 1-inch NPT connections for high flow applications
• Wide operating temperature range (-20°F to 180°F)
• Model 3 configuration

Applications

• Oil transfer and dispensing
• Industrial oil handling
• Heavy-duty fluid transfer operations
• Industrial fluid handling
• Automotive service applications
• Heavy equipment maintenance

Compatible Equipment

• XD5010AMPF

Related Parts

• 24P477
• 24P478
• 24P345
• 24P346
• 24P347
• 24P348
• 24P349
• 24P350
• 24P857
• 24P859

Part of the XD50 reel series with Model 3 dimensions. Available in blue color as shown in the ordering information table. Part of the XD 50 reel series with Model 3 configuration. Available in multiple colors for color-coding different fluids. This is a complete reel with hose assembly for oil applications, based on the XD5010AMPF bare reel model

Reference Manuals

• 340979 (Page 4)
• 340979EN-D (Page 3)
• 332203 (Page 6)
• 332399 (Page 6)
• 3A2990 (Page 6)
