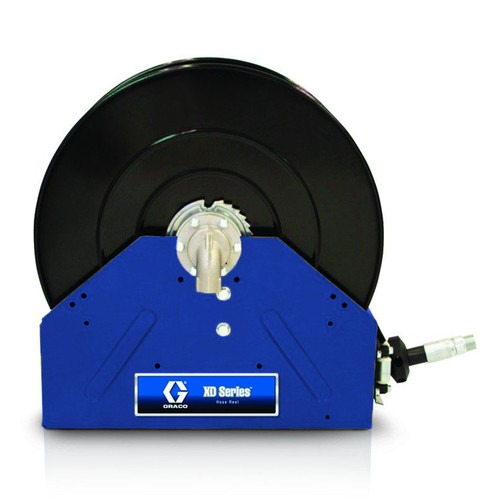

GRACO 24P497 - XD50 Diesel Fuel Hose Reel, 1-1/2" x 50 ft, Blue

Heavy-duty XD 50 series hose reel designed for fuel applications, featuring a robust construction with 1-1/2 inch diameter hose capacity for high-volume fuel transfer operations. Built to withstand demanding industrial environments with reliable retraction mechanism.

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
• Meets Worldwide Needs - Built standard with 90° elbow with NPT threads

Additional Specifications

• Color: Blue
• Operating Temperature: -20°F to 180°F (-28° to 82°C)
• Connection Type: Model 4
• Spring Type: A
• Bare Reel Model: XD5015ALPF

Features

• XD 50 series heavy-duty construction
• 1-1/2 inch hose for high flow applications
• 150 PSI pressure rating
• 50 foot hose length
• Model 4 configuration
• Heavy-duty XD 50 series construction

Applications

• Fuel dispensing
• Diesel fuel handling
• Commercial fuel operations
• Industrial fuel transfer
• Heavy equipment fueling

Compatible Equipment

• XD 50 reel systems
• Model 4 configurations
• XD5015ALPF

Related Parts

• 24P494
• 24P495
• 24P496
• 24P498
• 24P499
• 24P491
• 24P492
• 24P493
• 24P485
• 24P486

Part of the XD 50 reel family with Model 4 connection configuration. Blue color coding for fuel applications. Part of the XD 50 fuel reel series. Truck/bench mount only. Blue color option. Model 4 connection type provides 1-1/2 inch NPT inlet and outlet connections. This is a diesel fuel hose reel assembly with lower pressure rating (150 PSI) compared to other diesel fuel models in the series (250 PSI)
