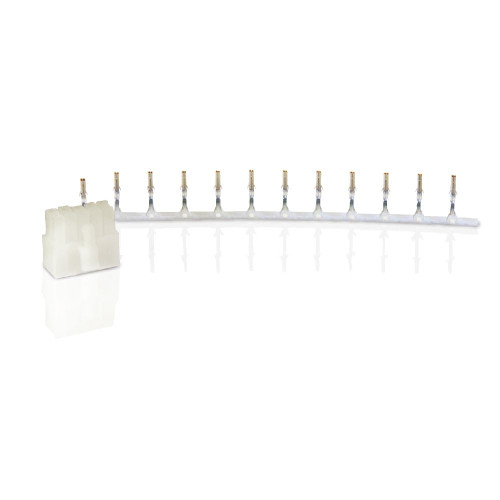

GRACO 24P686 - GLC 2200 Kit - GLC 2200 Connector (1) & Pins (12)

GLC 2200 connector and pins kit designed for establishing electrical connections in lubrication control systems. This essential connectivity component ensures reliable signal transmission for automated lubrication operations.

Specifications

• Connector Count: 1
• Pin Count: 12

Features

• Single connector with 12 pins for multiple connections
• Designed for GLC 2200 lubrication controller
• Essential electrical connection component

Applications

• Lubrication control system installations
• Electrical connections for automated lubrication
• GLC 2200 controller wiring

Compatible Equipment

• GLC 2200 controller
• GLC2200 system
• GLC 2200

Related Parts

• 24P468 - GLC 2200 controller
• 24P314 - GLC 2200 wiring harness – 150 cm (5 feet), flying leads
• 24P981 - GLC 2200 wiring harness – 300 cm (10 feet), flying leads
• 24P687 - GLC 2200 connectors (5) and pins (60)
• 24N468 - GLC2200
• 77X533 - Cable Gland Kit
• 77X545 - Electric Dyna-Star Power Cord and Cable Kits
• 77X546 - Electric Dyna-Star Power Cord and Cable Kits

Kit Contents

• 1 x GLC 2200 connector
• 12 x pins

Part of the GLC 2200 lubrication controller system accessories Part L in the typical installation diagram. Cable component for GLC2200 system connection. Listed as a related kit for the GLC 2200 system. Other related kits include 24P314 (GLC2200 Wiring Harness Kit) and 24P687 (Multiple Connector Kit)

Reference Manuals

• 340969 (Page 2) GLC 2200 Controller
• 352376 (Page 9) LubePro Series Pumps
• 333391 (Page 3) Dyna-Star HP and HF Pump AC to DC Conversion Kit
• 3A2960 (Page 27) GLC 2200 Lubrication Controller
• 3A2992 (Page 1) GLC2200 Wiring Connector Kit
