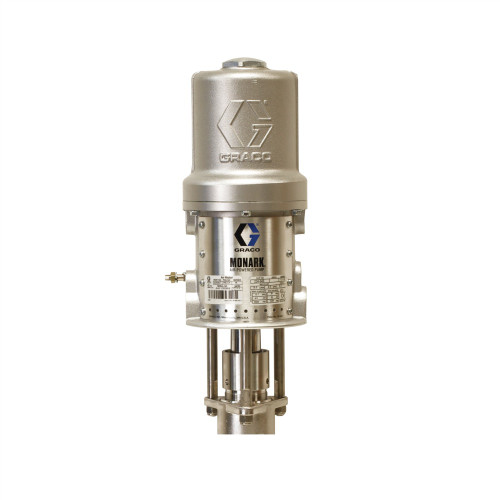

GRACO 24R046 - 2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump w/ UHMWPE & FKM Packings, 100 PSI

Specifications

• Length: 34 in., 86 cm
• Max Working Pressure: Maximum Air Inlet Pressure: 100 PSI (0.7 MPa, 6.9 bar), Maximum Fluid Working Pressure: 250 PSI (1.7 MPa, 17.0 bar)
• Material: U-Cup, UHMWPE
• Pump Type: Double Ball
• Drum Compatibility: Standard Drum Length
• Weight: 24 lb (10.9 kg)
• Ratio: 2.5:1
• Max Pump Speed: 100 cycles/min, 2.5 gpm delivery
• Air Inlet Pressure Range: 30 to 100 PSI (2.1 to 6.9 bar, 0.2 to 0.7 MPa)
• Fluid Temperature Range: 40 to 220°F (4 to 104°C)
• Max Continuous Operating Temp: 180°F (82°C)
• Max Ambient Temp: 120°F (49°C)
• Max Pumpable Solids: 1/8 in. (3.2 mm)
• Air Inlet: 3/8 NPT (F) (9.5 mm NPT (F))
• Air Exhaust: 3/8 NPT (m) (9.5 mm NPT (m))
• Cylinder Od: 2.0 in (5 cm)
• Inlet Seat Id: 0.938 in (2.4 cm)
• Fluid Outlet: 1 in. Tri-clamp® (2.5 cm Tri-clamp®)
• Sound Power: 73.4 dBA at 70 PSI and 20 cpm
• Sound Pressure: 65.4 dBA at 70 PSI and 20 cpm

Compatible Equipment

• Standard Drum Length (34 in., 86 cm Drum)
• Complete Pump Models 24N300, 24N344, 24R046, and 24R047
• Models 24R046 and 24R047

Related Parts

• 24N300
• 24N344
• 24R047, 24R047C31
• 24R190
• 24R189
• 24R192
• 24R191

Part of pump model series with CE marking, Ex certification (II 2 GD Ex h IIA T3 Gb Ex h IIIB T158°C Db), and food contact certification. EC 1935/2004 compliant pumps may be subject to individual national provisions. This is referenced as 24R192 in the parts table under reference 6, described as 'DISPLACEMENT PUMP; see Displacement Pump Parts. Used on Pump Model 24R046'. The page indicates this is one of the complete pump models covered. This appears to be a complete pump model rather than an individual part. Technical specifications apply to the entire pump system.

Reference Manuals

• 3A2977 (Page 3) SaniForce® 2:1 Sanitary Piston Pumps, Instructions/Parts
