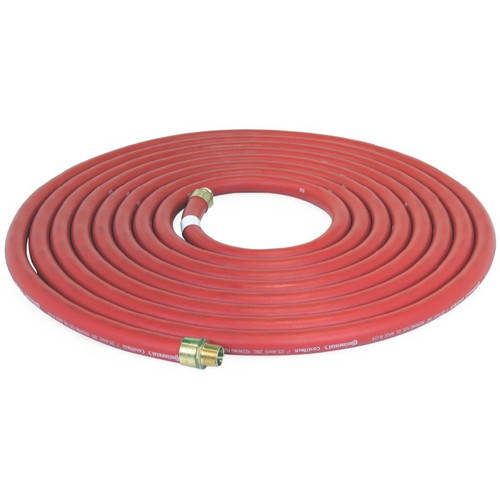

GRACO 24R102 - 1" x 50 ft Fuel Hose, 250 PSI, Brass NPT(M) Fittings

This fuel hose is standard equipment for GRACO XD40 and XD50 hose reels and XD60, XD70, XD80 power rewind hose fuel reels.

Specifications

• Inside Diameter: 1 inch
• Length: 50 ft
• Thread: NPT
• Max Working Pressure: 250 PSI (1.7 Mpa / 17 bar)
• Application: fuel
• Coupling: coupled
• Type: combustible
• Coupled: acoplada
• Temperature Range: -40 to 140°F (-40 to 60°C)
• Connection: 1 in. - 11.5 NPT (m) x (m)

Compatible Equipment

• XD40 models
• XD4010-CLP
• XD40, XD4010CLP, XD 40 Hose Reels, XD 50 Hose Reels

Related Parts

• 126376 - 3/4" x 75 ft Oil Hose 1500 PSI NPT(M) Fittings
• 126377 - 3/4" x 100 ft Oil Hose 1500 PSI NPT(M) Fittings
• 126503 - 1" x 50 ft Oil Hose 1275 PSI NPT(M) Fittings
• 126379 - 1" x 50 ft Waste Oil Evac. Hose 250 PSI NPT(M) Fittings
• 126363 - 1" x 75 ft Air/Water Hose 300 PSI NPT(M) Fittings
• 126504 - 1" x 75 ft Oil Hose 1275 PSI NPT(M) Fittings
• 126380 - 1-1/4" x 35 ft Waste Oil Evac. Hose 200 PSI NPT(M) Fittings
• 126688 - 1-1/4" x 50 ft Waste Oil Evac. Hose 200 PSI NPT(M) Fittings
• 24R103

This is a fuel hose designed for XD40 models with NPT threading Spanish language manual - 'MANGUERA, acoplada' means 'HOSE, coupled'; 'combustible' means 'fuel'; 'pulg' means 'inch'; 'pies' means 'feet' This is a coupled fuel hose with male x male NPT connections

Reference Manuals

• 332203 (Page 42) XD40/XD50 Hose Reel Repair
• 332399 (Page 29) Carretes de manguera XD40 y XD50, Instalación, Funcionamiento, Piezas, Español
• 332460 (Page 1) Fuel Hoses and Inlet Hose Kits for XD 40 and XD 50 Hose Reels and XD 60, XD 70, XD 80 Power Rewind Hose Reels.
• 332630 (Page 45) XD 60, XD 70, XD 80 Power Rewind Hose Reels
• 332631 (Page 50) XD60/XD70/XD80 Power Rewind Hose Reel Repair
