GRACO 24R765 - ThermoLazer ProMelt System 8″ SmartDie II Aluminum Die Efficient Pavement Striping

ThermoLazer ProMelt System 8″ SmartDie II aluminum die designed for efficient pavement striping applications with the high-performance ProMelt thermoplastic melting system

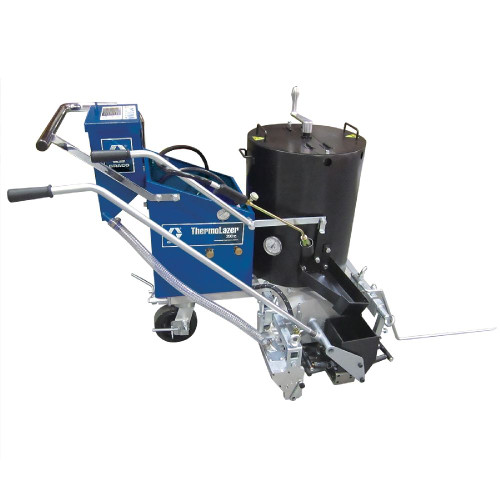

The ThermoLazer ProMelt unit is your solution for first-time stripers wanting to get into the highly profitable thermoplastic marking business, as it lets you avoid the additional costs of adding a premelt kettle truck or trailer, thus saving you time and labor, resulting in more money in your pocket. Graco's breakthrough technology allows you to melt 300 lbs of thermoplastic on board in less than an hour.

• Ease-Z-Steer Handle Bar System
  • Makes turning and handling as simple as a LineLazer System
  • Adjustable handle bar for users of all sizes
• ProMelt Technology
  • 4 Chamber Melting System—More surface area to melt thermoplastic fast
  • 100,000 BTUs—Faster melt time means more jobs get done everyday
• SmartDie II System
  • Fast change-out system—Hardened steel dies with mil thickness adjustment system built in
  • Use with or without heat—Allows you to optimize your striping in all weather conditions
  • "Floats" with the surface—Puts the thermoplastic where you want it for superior line quality
  • External Heat System—4-torch die heat system keeps it hot
• Ergonomic Design
  • Easier to use and almost effortless to push/pull, just like the proven LineLazer design
• Optional LineDriver System - LineDriver and LineDriver HD Systems adaptable for the ThermoLazer 300 tc System
  • Get higher productivity and straighter lines with less fatigue
  • Move between jobs without having to push
  • Dual Pedal System—Multiple positions allow for simple forward and reverse

Additional Specifications

• Material: Aluminum
• Die Size: 8 inches (20 cm)
• Die Type: SmartDie II
• Compatible System: ThermoLazer ProMelt System

Specifications

Features

• SmartDie II technology for precise material application
• 8-inch aluminum construction for durability
• Compatible with ProMelt system's 100,000 BTU dual burner
• Direct burner die heat system
• Temperature limit control at 475°F
• Works with Quad Mix material mixing system

Applications

• Pavement striping
• Road marking
• Thermoplastic line application
• Professional striping operations

Compatible Equipment

• ThermoLazer ProMelt System
• 300 lb melt chamber capacity units
• Linedriver compatible systems

Related Parts

• 24R623
• 18B400
• 24R762
• 24R763
• 24R764
• 24R766
• 24R767
• 24R768
• 24R770
• 24R771

Part of the ThermoLazer ProMelt System family with melt time of 1 to 1.5 hours for 300 lbs without premelter. System weight is 345 lbs (157 kg).

Reference Manuals

• 344507 (Page 5)
