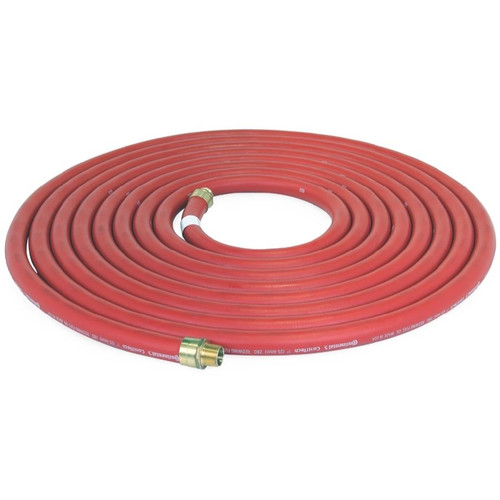

GRACO 24T253 - 1-1/2" x 100 ft Fuel Hose, 150 PSI, Brass NPT M Fittings, 1.5" - 11.5 NPT

Specifications

• Inside Diameter: 1.5 inch (3.81 cm)
• Length: 100 feet (30.48 m)
• Thread: 1.5 in. - 11.5 NPT
• Max Working Pressure: 150 PSI (1.0 (10 bar))
• Temperature Range: -40 to 140°F (-40 to 60°C)
• Connection Type: (m) x (m)
• Application: fuel

Compatible Equipment

• XD 60 Power Rewind Hose Reels

Related Parts

• 24R102 - 1" x 50 ft Fuel Hose, 250 PSI, Brass NPT(M) Fittings
• 24R103
• 24R106 - 1" x 100 ft Fuel Hose, 250 PSI, Brass NPT M Fittings
• 24R108 - 1-1/4" x 35 ft Fuel Hose, 250 PSI, Brass NPT(M) Fittings
• 24R110 - 1-1/4" x 50 ft Fuel Hose, 250 PSI, Brass NPT(M) Fittings
• 24R114 - 1-1/2" x 50 ft Fuel Hose, 150 PSI, Brass NPT(M) Fittings
• 24T252
• 24T254
• 24R115 - 1" x 28" Inlet Hose Kit for Diesel Fuel 250 PSI, NPT(M)

This is a coupled fuel hose with male x male NPT connections Listed in Hose Kits section. Related parts include other fuel hoses of various sizes and lengths. This appears to be a fuel hose listed in the hose kits section. Related parts include various other hoses for fuel, oil, air/water, and waste oil evacuation applications with different sizes and lengths.

Reference Manuals

• 332460 (Page 1) Fuel Hoses and Inlet Hose Kits for XD 40 and XD 50 Hose Reels and XD 60, XD 70, XD 80 Power Rewind Hose Reels.
• 332630 (Page 45) XD 60, XD 70, XD 80 Power Rewind Hose Reels
• 332631 (Page 50) XD60/XD70/XD80 Power Rewind Hose Reel Repair
