GRACO 24V241 - PTFE/EPDM Overmold Diaphragm Kit for 2-inch Pump, 125 PSI

PTFE/EPDM overmold diaphragm kit designed for GRACO Husky 2200 series 2-inch air-operated double diaphragm pumps. This diaphragm kit provides excellent chemical compatibility with PTFE construction and reliable sealing performance for demanding fluid transfer applications.

Specifications

• Flow Rate: up to 200 gpm (757 lpm)
• Max Working Pressure: 125 PSI (8.6 bar)
• Material: PTFE
• Pump Size: 2 inch (50.8 mm)
• Compatible Pump Series: Husky 2200

Features

• PTFE construction for superior chemical compatibility
• Overmold design for enhanced durability
• Designed for high-flow applications up to 200 gpm
• Compatible with air pressure up to 125 PSI

Applications

• Chemical processing
• Industrial fluid transfer
• High-flow pumping applications
• Corrosive fluid handling

Compatible Equipment

• GRACO Husky 2200 series pumps
• 653504 - Husky 2200 PP Pump Center Flange PP Center Section PP Seats PTFE Balls & PTFE Diaphragm - 2-inch Husky pump
• 653511 - Husky 2200 PP Pump End Flange PP Center Section PP Seats PTFE Balls & PTFE Diaphragm - 2-inch Husky pump
• 653546 - Husky 2200 Pvdf Pump Pp Center Section Pvdf Seats PTFE Balls & PTFE Diaphragm - 2-inch Husky pump, 2200P pump with configuration 2200P-PP01AP1PPPTFKPT

Related Parts

• 24V244 - Diaphragm Kit
• 24V248 - Air Valve Repair Kit
• 24V251 - Seat Kit
• 24K860 - Diaphragm
• 24V247 - Air Valve Repair Kit
• 24V242 - Standard Diaphragm Kit (SP)
• 24V243 - Standard Diaphragm Kit (FK)

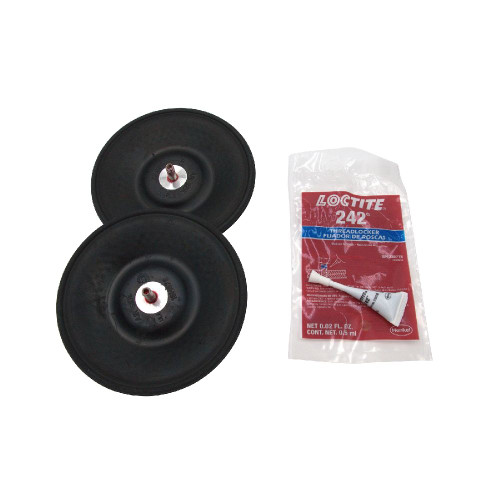

Kit Contents

• screw (Ref. 14)
• 2 overmolded diaphragms (12)
• 2 diaphragm set screws, stainless steel (14)
• 1 diaphragm install tool (302)
• 1 packet anaerobic adhesive

This diaphragm kit is specifically engineered for GRACO's Husky 2200 series 2-inch pumps and provides reliable performance in demanding industrial applications requiring chemical resistance. This is part of the Diaphragm Kits section (Ref. 12) which references pages 27 to 28 for full description Air plates are sold separately. The shaft is part of the Center Section Rebuild Kit (24V227) or the Center Shaft Kit (24V229). Kit is designated as 'PO' type in the configuration table.

Reference Manuals

• 345074 (Page 4) Husky 15120 and 2200 Flyer
• 3A2714 (Page 20) Husky™ 2200 Air-Operated Diaphragm Pump, Repair/Parts
• 3A7662 (Page 30) Husky 3250 Air-Operated Diaphragm Pump, Repair/Parts
• 407091 (Page 1) Overmolded Diaphragm and Fluid Section Repair Kits, Husky 2200
