GRACO 24W337 - GT 750 36:1 Grease Transfer Pump for 400 lb. Pail w/ Bung Adapter - NPT, 3600 PSI

The GT 750 pump was engineered to perform in challenging applications and changing environments. The large 7.5-inch (190 mm) air motor and pump lower combination allows the GT 750 pump to move the same amount of grease with up to four times fewer pump strokes.

• Efficient Air Motor -Use less air to move more grease.

• High Flow Rates - Up to 32 lb/min (13.6 kg/min) of grease.

• High Volume Per Stroke - Pump more grease without having to drive pump too quickly to damage seals.

• Proven Pump Technology - Based on Graco NXT™ pump technology.

• Multiple Tank Options - Available in 35, 120 and 400 lb (16, 54 and 181 kg) down tube lengths.

Additional Specifications

• Length: 400 lb (180 kg) drum length
• Max Working Pressure: 3600 PSI (24.8 MPa, 248 bar) Maximum Working Pressure
• Pump Type: GT 750
• Max Air Inlet Pressure: 100 PSI (0.7 MPa, 7 bar)
• Series: Series A
• Drum Capacity: 400 lb (180 kg)

Compatible Equipment

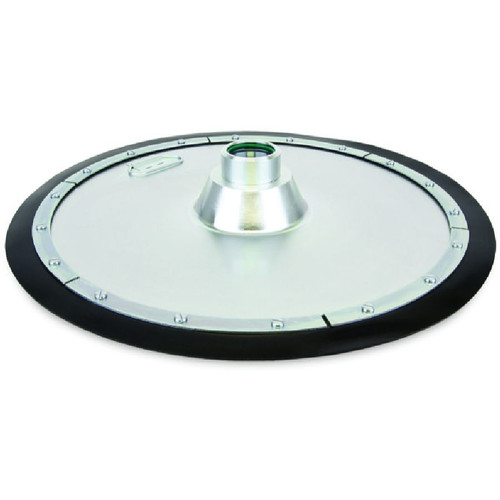

• Model 25P544 - Pump, Elevator, and Inductor Plate Assembly, GT 750 Grease Pump system, 24W337 model pump

Related Parts

• 239730 - 75:1 RATIO PRESIDENT PUMP
• 205395 - 50:1 RATIO PRESIDENT PUMP
• 239888 - 50:1 RATIO FIRE-BALL PUMP
• 25D116
• 24W498
• 17C102
• 17C254
• 131240 - Rod Connecting 36:1 120 Lb

Referenced as manual 3A5363 for parts. This is part of a pump, elevator, and inductor plate assembly system. Part of GT 750 Grease Pump family for transferring grease using medium pressure, high volume pump. For professional use only. Related to SaniForce Air Motor (3A1211). This appears to be a connecting rod component for the 24W337 model pump, listed as part reference 3 in the parts table with quantity 1

Reference Manuals

• 306556 (Page 18)
• 3A5363 (Page 1)
