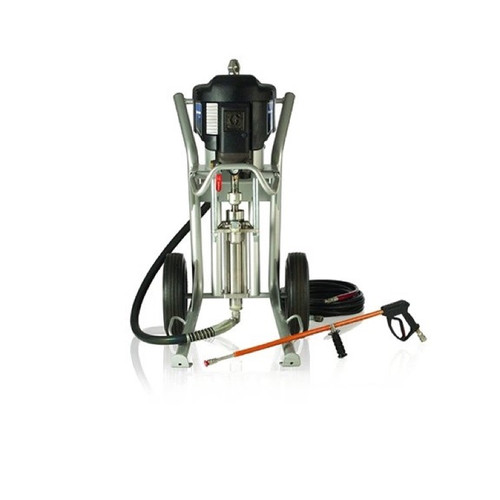

GRACO 24W473 - Hydra-Clean 30:1 Cart Mount Pneumatic Pressure Washer Package w/ Hose Reel, 3065 PSI
Professional pneumatic pressure washer system designed for heavy-duty cleaning applications including mining, oil and gas, service trucks, shipyards, agriculture, and sanitary operations. This 30:1 ratio cart-mounted unit with hose reel provides powerful cleaning performance for industrial environments.
Clean up your facility the quick, easy and efficient way with Graco Hydra-Clean pressure washers! Designed with Graco’s NXT air motor, it's ideal for industrial and sanitary applications including food processing facilities, heavy duty cleaning, maintenance, shipyards, oil rigs and more.
- Great for high pressure cleaning and sanitizing
- Fits most pressure, flow and material requirements
- Use with open-head universal drums
- Designed to use with cold or hot water up to 200°F (93°C)
- Spray down portability for use in sanitary applications
- Supports multiple guns
- Efficient cleaning with water, detergent or chemical solutions
Additional Specifications
- Flow Rate: 6.8 gpm (25.9 lpm)
- Max Working Pressure: 3065 PSI (211 bar, 21.1 MPa)
- Max Air Input Pressure: 100 PSI (7 bar, 0.7 MPa)
- Volume Per Cycle: 14.5 cc (430 cc)
- Fluid Outlet Size: 3/8 in
- Series: A
- Maximum Air Input Pressure: 100 PSI (0.7 MPa, 7.0 bar)
- Displacement Pump Size: 430 cc per cycle
- Includes Portable Cart: True
- Includes Hose Reel: True
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Type | NPT |
| Includes | Hose Reel |
| Maximum Fluid Flow Rate @ 60 CPM (GPM) | 6.8 |
| Maximum Working Pressure (MPa) | 21.1 |
| Maximum Working Pressure (psi) | 3065 |
| Motor Series | NXT Air Motor |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Pump Ratio | 30:1 |
| Pump Type | Dura-Flo 1800 Pump |
| Type | Pneumatic Pressure Washer |
| Volume Per Cycle (oz) | 14.5 |
Features
- 30:1 pump ratio for high pressure output
- Cart mounted for mobility
- Includes hose reel for convenient storage
- Pneumatic operation - no electricity required
- Heavy-duty construction for industrial use
- High flow rate of 6.8 GPM
Applications
- Mining operations
- Oil and gas facilities
- Service trucks
- Shipyards
- Agriculture
- Sanitary applications
Compatible Equipment
Related Parts
- 247549 - Hydra-Clean 12:1 Cart Mount Pneumatic Pressure Washer Package
- 247550 - Hydra-Clean 12:1 Wall Mount Pneumatic Pressure Washer Package, 1250 PSI (86 Bar
- 247551 - Hydra-Clean 23:1 Cart Mount Pneumatic Pressure Washer Package, 2275 PSI (157 Bar
- 247552 - Hydra-Clean 23:1 Wall Mount Pneumatic Pressure Washer Package
- 247553 - Hydra-Clean 30:1 Cart Mount Pneumatic Pressure Washer Package
- 258664 - Hydra-Clean 40:1 Cart Mount Pneumatic Pressure Washer Package
- 258665 - Hydra-Clean 40:1 Wall Mount Pneumatic Pressure Washer Package
- 206515 - 10:1 Ratio Pneumatic Hydra-Clean Drum Mount, 1800 PSI (125 Bar
- 24W856 - Series A, 6:1 ratio, 1000 cc displacement
- 247549 - Series C, 12:1 ratio, 550 cc displacement
Kit Contents
- 312585 - Package Instruction Manual
- N65DN0 - Air Motor Part Number
- 311238 - Air Motor Manual
- 687055 - Pump Lower Part number
- 311825 - Pump Manual
- SST/CF-PTFE/UHMWPE - Wetted Parts
- Hose Reel included
- air controls
- ground wire
- portable cart
- hose reel
Part of the Pneumatic Hydra-Clean product line. Maximum fluid pressure when spraying with available GRACO spray tips may be lower than stated conditions. All packages include air controls, hose and gun, and ground wire. Package comes with portable cart and hose reel configuration. This appears to be a complete model (24W473) that includes a hose reel as standard equipment. Kit 24W471 can be used to add a hose reel to other models that don't include one.
Reference Manuals
- 338026 (Page 3) Hydra-Clean
- 312585 (Page 2) Hydra-Clean Packages
