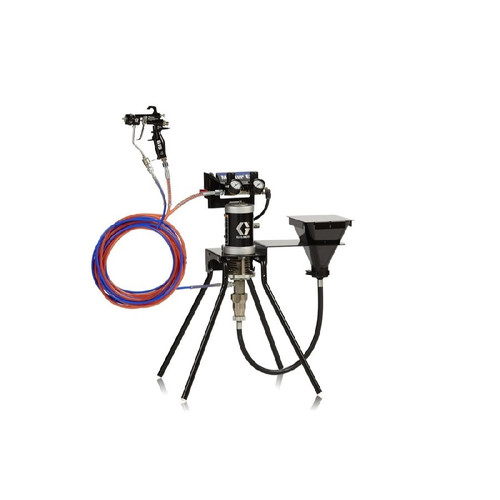

GRACO 24X311 - 15:1 Merkur ES Air Assisted Package, wall mount, steel plated, bare, used as a solvent flush pump for M2K systems, 1500 PSI

Air-assisted pump, wall mount, plated steel material, used as a solvent flush pump in the M2K system

Specifications

• Max Working Pressure: 1500 PSI (10.3 MPa, 103 bar)
• Material: Plated Steel
• Series: A
• Ratio: 15:1
• Package Type: Air-assisted
• Mounting: Wall
• Mount Type: wall mount
• Outlet Fluid Hose: 3/16 in x 4.5 ft (P/N 238959)

Compatible Equipment

• M2K system
• 24X311, mix manifold

Related Parts

• 24N548
• 24J250
• 24J251
• 24F150
• 24F151
• 24W281
• 24F158
• 24F159
• 24W283
• 24F152

Kit Contents

• 24H102 - BRACKET, wall
• 24F164 - KIT, stand
• 24G693 - MOTOR, air
• 24G707 - KIT, rod, tie
• 24H103 - SPRING, safety
• 24H104 - ADAPTER, pump lower
• 104541 - NUT, lock (qty 3)
• 24G701 - LOWER, pump
• 195150 - NUT, jam
• 162453 - NIPPLE; 1/4 npsm x 1/4 NPT; plated steel
• 238959 - HOSE, outlet fluid, 3/16 in x 4.5 ft

Part No. 24X311 is used as a solvent flush pump in the M2K system. See manual 333309 for warnings and instructions for a solvent flush pump. Part of Package Parts 15:1 Ratio Pumps family. Uses plated steel nipple (162453) rather than stainless steel version used in some other models. This appears to be a package variant that includes additional outlet fluid hose for connection to mix manifold. Referenced in footnote as part of the same product family as other 24F/24W/24J models shown in the table.

Reference Manuals

• 3A0732 (Page 3) Merkur ES Spray Packages
• 3A5377 (Page 1) 17D472 Merkur ES Flush Kit
