GRACO 24Y407 - Module Pump Hydraulic Afso

Item #: 24Y407

Price: $9,800.00

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

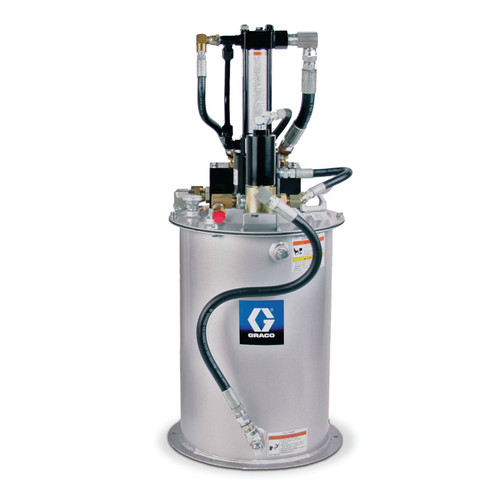

GRACO 24Y407 Hydraulic Dyna-Star® 10:1 90 lb . Pump Kit - Injector, Mechanical AFSO

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, preventing expensive component failures.

For use with Dyna-Star® 10:1 Off-Road Mobile Lubrication Systems.

A wide variety of 60 lb (27 kg), 120 lb (54 kg) and 400 lb (181 kg) pump lengths and 60 lb (27 kg) and 90 lb (41 kg) reservoir options to fit all your off-road equipment
Pre-configured pump kits for injector or divider valve based systems give you maximum flexibility
Optional Graco controller, level indicator, pressure switch, follower plates and drum covers put you in control of your system-no more second guessing
Convenient pressure and flow control built-in
Hydraulic control module - all your controls in one package for easy system setup and maintenance
Dyna-Star 10:1 90 lb (41 kg) pump kit – injector – mechanical AFSO

Specifications:

Air Inlet Size (in)	1/4
Air Inlet Thread Type	NPT
Application	Off-Road Equipment
Compatible Material	Grease
Fluid Outlet Size (in)	0.5
Fluid Outlet Thread Type	NPT
IP Rating	IP69K
Maximum Fill Inlet Pressure (psi)	600
Maximum NLGI Grade	#2
Maximum Working Pressure (MPa)	24
Maximum Working Pressure (psi)	3500
Minimum cST Grade (cST)	40
Overall Height (in)	33.9
Power Type	Hydraulic
Reservoir Size (lb)	90
Type	Hydraulic Piston Pump
