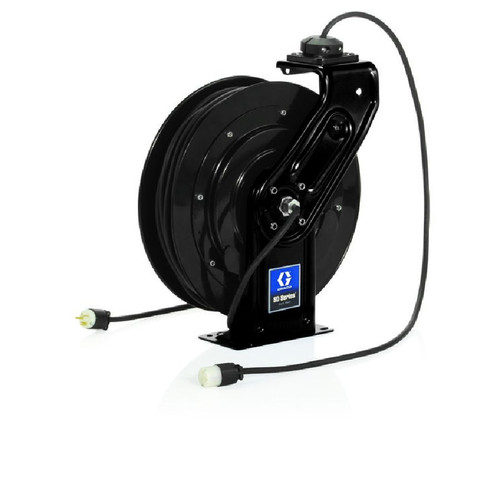

GRACO 24Y862 - SD5 120V Cord Reel - Single Receptacle - 35 ft, 12/3, 20A Cord, Black, M22 x 1.5
CAP, wire, M22 x 1.5, 12 AWG and 2.5 mm², models 24M512, 24M513, 24M516, 24M521, 24M522, 24Y859, 24Y862 - 24Y864, 24Y880 - 24Y883, 24Y888, 24Y889
Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.
- Heavy-duty steel construction, SD Series size 5.
- 35 foot (10 m) cord and features a 5 foot lead-in cable.
- Single industrial receptacle
- Adjustable Arm - Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.
- Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.
Additional Specifications
- Length: 35 feet (10 meters)
- Thread: M22 x 1.5
- Wire Size: 2.5 mm²
| Cord Length (ft) |
35 |
| Includes |
Single Industrial Receptacle |
| Insulation Type |
SJOOW |
| Maximum Current (A) |
20 |
| Maximum Operating Temperature (°F) |
122 |
| Overall Height (in) |
14.8 |
| Overall Length (in) |
13.84 |
| Overall Width (in) |
4.7 |
| Power Cord Connect Type |
NEMA 5-20P |
| Reel Color |
Black |
| Series |
5 |
| Sound Power Level (dB(A)) |
87 |
| Sound Pressure Level (dB) |
80 |
| Type |
Cord Reel |
| Voltage (V ac) |
120 |
| Weight (lb) |
28.2 |
| Wire Gauge (AWG) |
12 |
Compatible Equipment
- 24M512
- 24M513
- 24M516
- 24M521
- 24M522
- 24Y859 - SD5 120V Cord Reel - No Accessory, Cord Only - 50 ft, 12/3, 20A Cord, Black, M22 x 1.5
Related Parts
- 24Y858 - SD5 120V Cord Reel - No Accessory, Cord Only - 50 ft 16/3, 13A Cord, Black
- 24Y879 - SD10 120V Cord Reel - No Accessory, Cord Only - 95 ft, 16/3, 10A, Black
- 24Y859 - SD5 120V Cord Reel - No Accessory, Cord Only - 50 ft, 12/3, 20A Cord, Black, M22 x 1.5
- 24Y880
- 24Y860
- 24Y861 - SD5 120V Cord Reel - Single Receptacle - 50 ft, 16/3, 13A Cord, Black
- 24Y863 - SD5 120V Cord Reel - Single Receptacle - 50 ft, 12/3, 20A Cord, Black
- 24Y881
- 24Y882 - SD10 120V Cord Reel - Single Receptacle - 95 ft, 12/3, 18A, Black
- 24Y964
Part of the 120 Volt Models series with ETL Intertek certification Part of the 120 Volt Models series with Intertek certification. Blue model equivalent is 24M521. This appears to be a wire cap component that is used in various cord reel models including 24Y862. The part is specifically designed for 12 AWG wire with 2.5 mm² cross-sectional area.
Reference Manuals
- 3A2592 (Page 3) SD Series Cord and Light Reel, Installation-Operation
- 3A2826 (Page 3) SD Series Cord and Light Reel
