GRACO 24Z058 - Pump A2900 Grs 4Lb

Item #: 24Z058

Price: $1,235.00

QTY:

Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

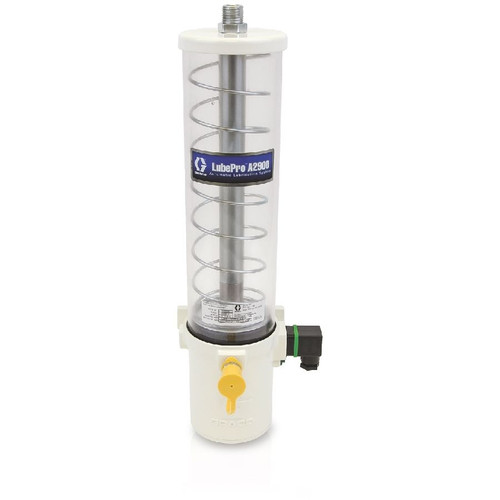

GRACO 24Z058 LubePro™ A2900 Vertical Grease Pumps, 4 lb. Reservoir, Normally Open, Low Level - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.

Single Stroke Grease Pump for Automatic Lubrication

LubePro A2900 is compatible with GL-1, GL-32 and GL-33 injectors
Pressure Ratio of 29:1
A2900 delivers a greater output than competitive models at 0.58 in³ (9.5 cm³) per stroke
Pneumatic power makes it easy to install into existing air line
Factory installed Low Level Detection available
Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
Built with high-quality seals tested to outperform the competition
High-strength, shatter resistant, 4 lb (1.81 kg) reservoir
Optimally lubricates while your machines are running
Provides accurate, reliable lubrication for every lube point

Specifications:

Air Inlet Size (in)	1/4
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Compatible Material	Grease
Compatible Metering Device	Series Progressive, Single Line Parallel
Fluid Outlet Size (in)	0.25
Fluid Outlet Thread Type	NPT
Includes	Low Level
Maximum Air Inlet Pressure (psi)	175
Maximum NLGI Grade	#2
Maximum Working Pressure (MPa)	24.1
Maximum Working Pressure (psi)	3500
Overall Depth (in)	6.5
Overall Height (in)	19.83
Overall Width (in)	6.9
Power Type	Pneumatic
Reservoir Size (lb)	4
Type	Pneumatic Piston Pump
Weight (lb)	11
Wetted Material	Zinc-Plated Steel, Casting Aluminum ZL101, Magnet, Plastic POM, Polycarbonate, Buna-N, PTFE, PEEK

Specifications

GRACO 24Z058 LubePro™ A2900 Vertical Grease Pumps, 4 lb. Reservoir, Normally Open, Low Level - NPT

Single Stroke Grease Pump for Automatic Lubrication

LubePro A2900 is compatible with GL-1, GL-32 and GL-33 injectors
Pressure Ratio of 29:1
A2900 delivers a greater output than competitive models at 0.58 in³ (9.5 cm³) per stroke
Pneumatic power makes it easy to install into existing air line
Factory installed Low Level Detection available
Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
Built with high-quality seals tested to outperform the competition
High-strength, shatter resistant, 4 lb (1.81 kg) reservoir
Optimally lubricates while your machines are running
Provides accurate, reliable lubrication for every lube point

Specifications:

Air Inlet Size (in)	1/4
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Compatible Material	Grease
Compatible Metering Device	Series Progressive, Single Line Parallel
Fluid Outlet Size (in)	0.25
Fluid Outlet Thread Type	NPT
Includes	Low Level
Maximum Air Inlet Pressure (psi)	175
Maximum NLGI Grade	#2
Maximum Working Pressure (MPa)	24.1
Maximum Working Pressure (psi)	3500
Overall Depth (in)	6.5
Overall Height (in)	19.83
Overall Width (in)	6.9
Power Type	Pneumatic
Reservoir Size (lb)	4
Type	Pneumatic Piston Pump
Weight (lb)	11
Wetted Material	Zinc-Plated Steel, Casting Aluminum ZL101, Magnet, Plastic POM, Polycarbonate, Buna-N, PTFE, PEEK
