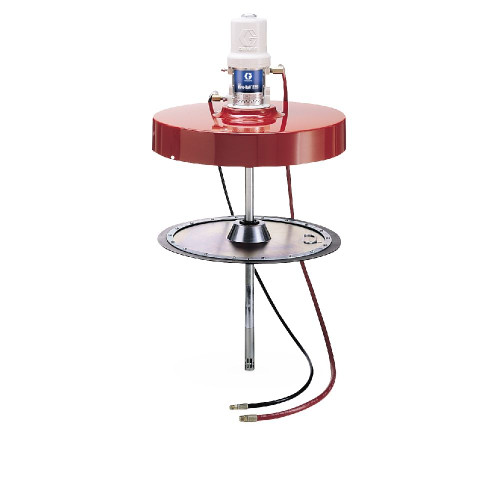

GRACO 253390 Mini Fire-Ball® 225 50:1 400 lb. Grease Pump - Stationary Supply Package
You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Specifications:
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Grease |
| Fluid Inlet Type | Slotted |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Mini Fireball 50:1 225 Pump, Hose and Fitting Kit, Cover, Follow Plate, Shim |
| Maximum Air Working Pressure | 8400 |
| Maximum Working Pressure (MPa) | 35 |
| Maximum Working Pressure (psi) | 5000 |
| Motor Type | Pneumatic |
| Mount Location | Drum Mount |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Pump Weight (lb) | 15 |
| Series | 225 |
| Type | Piston Pump Package |
| Wetted Material | Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin |
