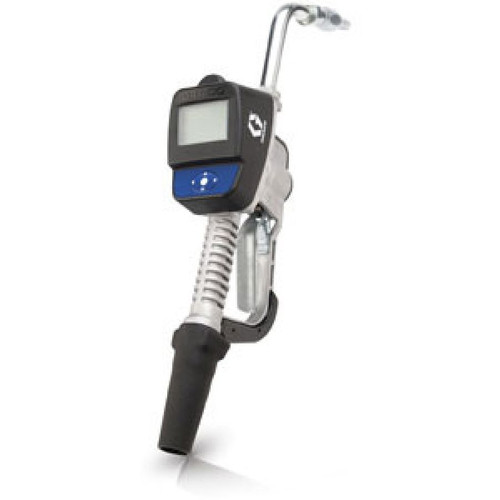

GRACO 256486 Matrix Electronic Meter with Rigid Exten., 14 GPM or Less, Oil

GRACO 256486 Matrix Electronic Meter with Rigid Exten., 14 GPM or Less, Oil

GRACO 256486 Matrix Electronic Meter with Rigid Exten., 14 GPM or Less, Oil

GRACO 256486 Matrix Electronic Meter with Rigid Exten., 14 GPM or Less, Oil

Item #: 256486

Price: $3,280.00

QTY:

Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

GRACO 256486 Matrix Electronic Meter with Rigid Exten., 14 GPM or Less, Oil

Specifications:

1/2" npt(f) swivel, rigid extension high flow, quick-close nozzle for oil
Flow Range: 0.1 to 14 gpm (0.4 to 53 lpm)
Maximum Working Pressure: 1500 psi (103.4 bar)
Operating Fluid Pressure Range: 100-1500 psi (7-103 bar, 0.7-10.3)
Weight (with battery and rigide nozzle extension): 6.07 lbs (2.75 kg)
Units of Measurement: Programmable in pints, quarts, gallons, or liters
Inlet: 3/4 in-14npt or 1/2 in - 14npt
Outlet: 3/4 in - 16 straight thread O-ring Boss
Maximum Totalizer: 999,999 gallons or liters
Maximum Recorded Dispense: 999.9 Units
Maximum Pre-Set Volume: 999.9 Units
Battery: Preset Models six months, manual models- one year
Wetted Parts: Aluminum, sst, pbt/pc, nitrile rubber, cs
Fluid Compatibility: Petroleum and synthetic based oils and anti freeze mixtures (not compatible with fuel and windshield washer fluid)
Accuracy: plus or minus .5%
Repeatability: plus or minus .15%
Meter Pressure Loss: plus or minus .5%
Dimensions without extension: 13" L x 3.75" W x 5.75" H
Instruction Manual: 313046
Specifications

GRACO 256486 Matrix Electronic Meter with Rigid Exten., 14 GPM or Less, Oil

Specifications:

1/2" npt(f) swivel, rigid extension high flow, quick-close nozzle for oil
Flow Range: 0.1 to 14 gpm (0.4 to 53 lpm)
Maximum Working Pressure: 1500 psi (103.4 bar)
Operating Fluid Pressure Range: 100-1500 psi (7-103 bar, 0.7-10.3)
Weight (with battery and rigide nozzle extension): 6.07 lbs (2.75 kg)
Units of Measurement: Programmable in pints, quarts, gallons, or liters
Inlet: 3/4 in-14npt or 1/2 in - 14npt
Outlet: 3/4 in - 16 straight thread O-ring Boss
Maximum Totalizer: 999,999 gallons or liters
Maximum Recorded Dispense: 999.9 Units
Maximum Pre-Set Volume: 999.9 Units
Battery: Preset Models six months, manual models- one year
Wetted Parts: Aluminum, sst, pbt/pc, nitrile rubber, cs
Fluid Compatibility: Petroleum and synthetic based oils and anti freeze mixtures (not compatible with fuel and windshield washer fluid)
Accuracy: plus or minus .5%
Repeatability: plus or minus .15%
Meter Pressure Loss: plus or minus .5%
Dimensions without extension: 13" L x 3.75" W x 5.75" H
Instruction Manual: 313046
