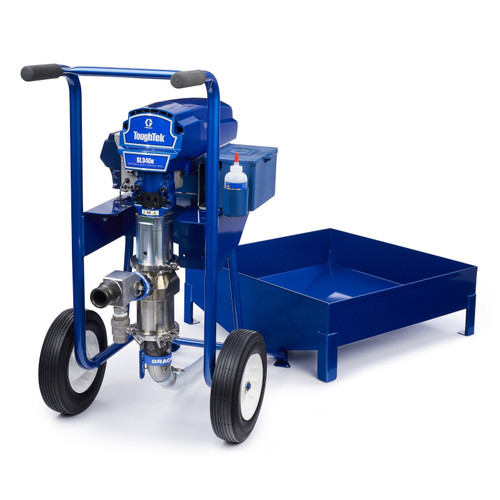

GRACO 25B510 - ToughTek SL340e Self-Leveling Floor Topping Pump Package, 120V, 3/8", 600 PSI

The GRACO 25B510 is a complete package for the ToughTek SL340e Self-Leveling Floor Topping Pump, designed for efficiently applying water-based self-leveling compounds and floor toppings. This piston pump system delivers reliable performance for flooring contractors with remote switch operation and comprehensive accessories included.

The ToughTek SL340e self-leveling pump eliminates the need to move mixers around the jobsite. Keep the mixer and material in one spot while using the hose to reach your work areas. The Quick-Access Piston Pump offers long life and a low cost of ownership for maximum productivity and profitability.

Graco's double-displacement piston pump technology offers unmatched performance. Oversized clearances ensure minimal pressure drop and trouble-free performance.

• Durable Quick Access Piston-Pump
  • Heavy-duty steel construction for long life and everyday performance
  • Oversized inlet and internal passages for trouble-free pumping
  • Quick-access design for fast and easy maintenance
• MaxPower DC Brushless Motor
  • High-torque = more work done
  • No maintenance design
  • Totally-enclosed design keeps dust and debris out
• Compact and Portable
  • Weighs only 210 lb
  • Easy to transport
• Adjustable Material Flow Control
  • Dial in the exact flow needed for your job
  • High or low flow — you decide
• Low Profile 30 Gallon Hopper
  • Easily mix and pour with standard barrel mixers
  • All steel construction for years of service
  • Sloped design allows maximum flow to pump
• No-Tools Hopper Removal
  • Disconnect in seconds for easy cleaning and transport
• Convenient 120V Power
  • Plugs into standard 120V wall outlet
  • No electrician or rewiring needed

Additional Specifications

• Flow Rate: 12 gpm (45 lpm)
• Inside Diameter: 1-3/8 in (35 mm)
• Length: 50 ft (15 m)
• Max Working Pressure: 600 PSI (42 bar)
• Material: Water Based Materials Compatible
• Power Input: 120V, 15A
• Pump Outlet Size: 1.5 in (38 mm) Camlock
• Maximum Particle Size: 5/16 in (8 mm)
• Maximum Hose Length: 150 ft (46 m)
• Hopper Capacity: 30 gal (114 l)
• System Weight: 210 lb (95 kg)
• Material Delivery: 130 bags per hr
• Hose Length: 150 ft (46 m)
• Manual: 3A7352

Model	ToughTek
Series	SL340e
Type	Piston Pump Package

Features

• Piston pump technology for consistent material delivery
• Remote switch operation for convenient control
• Water-based material compatibility
• 130 bags per hour material delivery capacity
• 600 PSI maximum pressure capability
• 30 gallon hopper capacity

Applications

• Self-leveling floor compound application
• Floor topping installation
• Commercial flooring projects
• Residential floor preparation
• Self-leveling floor topping applications
• Underlayment installation

Compatible Equipment

• Water-based self-leveling materials
• Floor toppings and compounds
• ToughTek SL340e Self-Leveling Topping Pump
• SL340e

Related Parts

• 25B509 - ToughTek SL340e Self-Leveling Floor Topping Pump, 120V, Water Based Materials, 600 PSI
• 25T298 - Slu Add-on Hopper Kit
• 25A467 - Repair Kit, Check Balls, S340E
• 27A004 - Toughtek Hose, 50' L, 1-3/8" x 50 ft Cmlk, 600 PSI
• 25G467
• 25G233
• 25C823
• 16W490
• 17W604 - Kit, Module, Remote

Kit Contents

• 25B509 - Bare pump unit
• Water pump
• 50 ft hose
• Remote switch and accessories
• 25B510 includes: Kit includes 2 x GX11 hose
• 25B509 Gun

This is the complete package version (25B510) which includes the bare pump (25B509) plus water pump, hose, and accessories. Manual reference 3A7382. This hose comes as a pair (2 pieces) included with the ToughTek SL340e pump package. The system features convenient 120V power, adjustable material flow control, and is designed for high-torque work with a MaxPower DC brushless motor. Part of the SL340e piston pump system designed for self-leveling applications

Reference Manuals

• 3J0254EN-A (Page 3)
• 3J0256EN-A (Page 2)
• 3J0423EN-B (Page 4)
• 3J0423EN-C (Page 4)
• null (Page 2)
