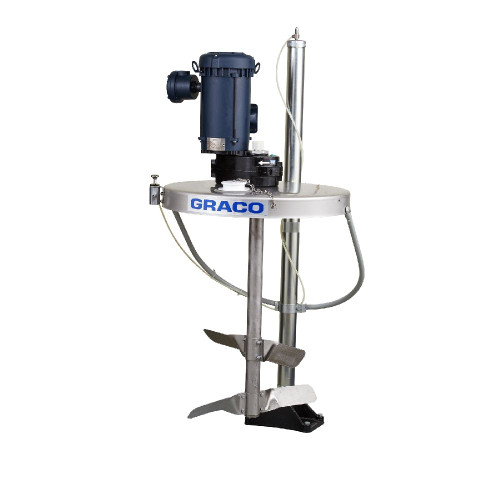

GRACO 25C374 - Electric Back Gear Drum Agitator w/ drum cover, elevator, shaft & blades, UL, 100 PSI
Heavy-duty, electric, back-geared agitator (UL listed) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.
Additional Specifications
Specifications
| For Use With | 55 Gallon (208 Liter) Drum |
| Includes | Drum Cover, Elevator, Shaft, Blade |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Speed (RPM) | 50 |
| Maximum Viscosity (cP) | 3000 |
| Maximum Working Pressure (psi) | 100 |
| Minimum Operating Temperature (°F) | 32 |
| Motor Type | Electric |
| Power Rating (HP) | 0.75 |
| Power Rating (kW) | 0.37 |
| Type | Agitator |
| Weight Range (lb) | 70-75 |
| Wetted Material | Stainless Steel, Acetal, AF, Nylon, PTFE |
Compatible Equipment
Related Parts
Kit Contents
This is a 60 Hz back gear agitator that includes drum cover and elevator components. Related parts in the same family include drive-only version (25C483), basic agitator (25C485), version with siphon (25C486), and full version with drum cover, elevator and siphon (25C451). Part of UL Listed Explosion Proof Inverter Duty Motor models. Requires VFD motor control (ordered separately). Includes shaft and blades, drum cover, elevator and cover support, and elevator air control components. This is an Agitator with Drum Cover and Elevator system. The part appears to be the main agitator assembly for model 25C374, which is one of four models (25C374, 25C451, 25C480, 25C481) shown in this parts diagram.
